No-twist, no-turn cylinder filling connectors with patented safety locking mechanisms for industrial, medical, and specialty gas operations. Improve flow, process more cylinders per shift, and reduce operator injuries.
In a fill plant, every second counts. The time it takes an operator to connect a pigtail to a cylinder valve, verify the seal, fill the cylinder, and disconnect determines how many cylinders move through the plant per shift—and how much revenue the operation generates. Traditional threaded connections require multiple turns with a wrench, creating repetitive stress injuries, inconsistent seal quality, and wasted time on every fill cycle.
FasTest compressed gas filling connectors eliminate all of that. Our patented “No Twist, No Turn” approach lets operators connect to cylinder valves in a single smooth motion, establish a leak-tight seal under pressure with a safety locking mechanism, and disconnect just as quickly when the fill is complete. The result is more cylinders filled per shift, fewer operator injuries, more consistent seal quality, and a measurable return on investment that typically pays for itself within months.
FasTest offers compressed gas filling connectors for all major valve standards—CGA, NF, BS, DIN, and UNI—across industrial, medical, and specialty gas applications, with gas compatibility spanning nitrogen, oxygen, CO2, air, argon, inert gases, oxidizers, and flammable gases. Whether you’re filling one cylinder at a time, running inverted rack filling, or managing palletized cylinder filling operations, FasTest has the connectors to improve your process.
FasTest Compressed Gas Connection Tools offer a “No Twist, No Turn” approach to cylinder filling. Under pressure, a secure, leak-tight seal is established with our patented safety locking mechanism. Gain a competitive advantage through ergonomic efficiency and increased productivity, resulting in greater profitability. Our connectors will improve your cylinder filling performance, whether it is one cylinder at a time, inverted rack filling, or palletized cylinder filling.
As an industry leader of sealing and connection technologies, FasTest offers standard products for many valve standards, and a dedicated team of custom design experts to engineer optimized solutions for demanding applications. Connect safely, seal reliably, fill fast.
Please complete this form and a FasTest representative will be in contact with you.
| Operation / Application | FasTest Solutions |
|---|---|
| Single Cylinder Filling | Bail-style and sleeve-style compressed gas filling connectors for individual cylinder fill stations. One-handed connection to CGA, NF, BS, DIN, and UNI valve standards. Optimized for fast connect-disconnect cycles on manual and semi-automated fill points. |

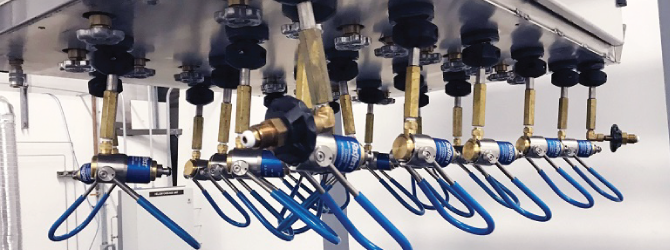

| Inverted Rack Filling | Connectors designed for inverted cylinder rack configurations used in high-volume industrial gas production. Bail-handle designs accommodate overhead access with minimal operator reach and force. |
| Palletized Cylinder Filling | Connectors for pallet-based filling operations where multiple cylinders are filled simultaneously. Designed for the ergonomics and access requirements of pallet fill manifold systems. |
| 6-Pack and 12-Pack Filling | Bail-handle connectors sized to work within the tight clearances of bundled cylinder packs. Handles accommodate valve guards, integrated pressure regulators, and close-spacing constraints. |
| Medical Cylinder Filling | MediMate® yoke connectors (the industry standard for small medical post-valve cylinders) plus bail and sleeve options for larger medical cylinders. Compatible with medical-grade oxygen, nitrous oxide, and medical gas mixtures. |
| Specialty & High-Purity Gas Filling | High-purity compressed gas filling connectors designed to maintain gas cleanliness during the fill process. Suitable for electronics-grade gases, calibration gases, analytical standards, and other applications where contamination control is critical. |
| Cylinder Proof Testing | High-pressure connectors for hydrostatic and pneumatic cylinder proof testing per DOT, TC, TPED, and other regulatory requirements. Rated for proof test pressures above normal fill pressures. |
| Cryogenic Cylinder Venting | CryoVent™ connectors for safe venting of liquid gas cylinders. Designed for the pressure and temperature extremes of cryogenic cylinder service. |
| RPV (Residual Pressure Valve) | Connectors designed specifically for RPV-equipped cylinders, which require a different connection approach than standard valves. Bail-handle RPV connectors provide reliable sealing and safe connection. |
| Valve Guard Access | Connectors with handle geometries designed to work within valve guards without requiring guard removal—saving time and reducing damage risk on guarded cylinders. |

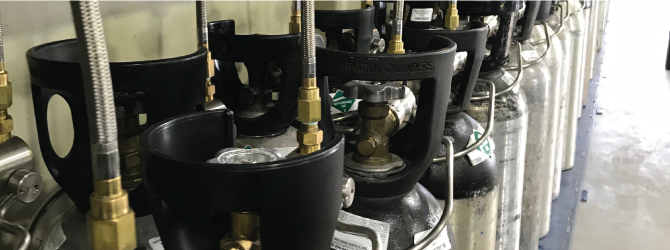

Increase industrial packaged gas production. Safer and more efficient solutions for industrial cylinder filling production
Industry standard MediMate connectors and sleeve or bail style connection tools for medical compressed gas.
Quick connection tools that allow you to fill with efficiency, safety, and high purity level.
FasTest compressed gas filling connectors are an investment in fill plant productivity, and the return is measurable. Here’s how the economics work:
The combined effect—faster fills, more cylinders, fewer injuries, less gas loss—means FasTest compressed gas filling connectors typically pay for themselves multiple times over within the first year.
FasTest® Connection Tools enable fill plants to improve flow and process more fill cycles per day, generating significant revenue in return.
Easy-to-use one hand operation, eliminate the painful twisting motions of standard fittings.
FasTest’s ergonomic tools instantly attach to cylinder valves in a smooth one handed motion. Easily achieve a 90% time savings while securing pigtails to the cylinder.
Precision engineered tools provide the highest quality connection and seal for accurate testing.
Many products ship within 48 hours to maintain uptime of all fill points.
Connection Tools pay for themselves multiple times over throughout their lifecycle.

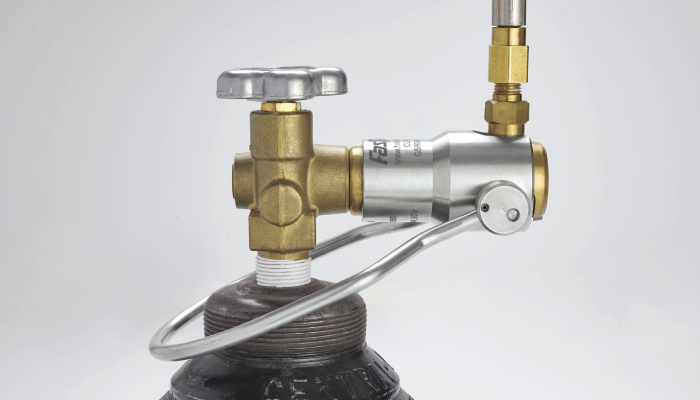

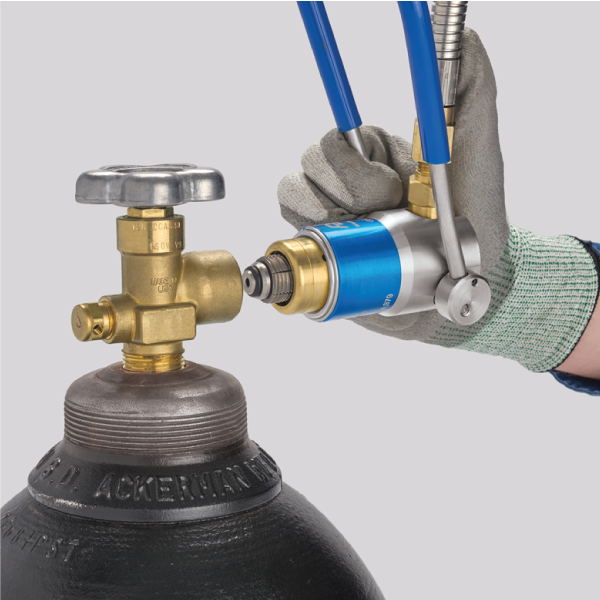

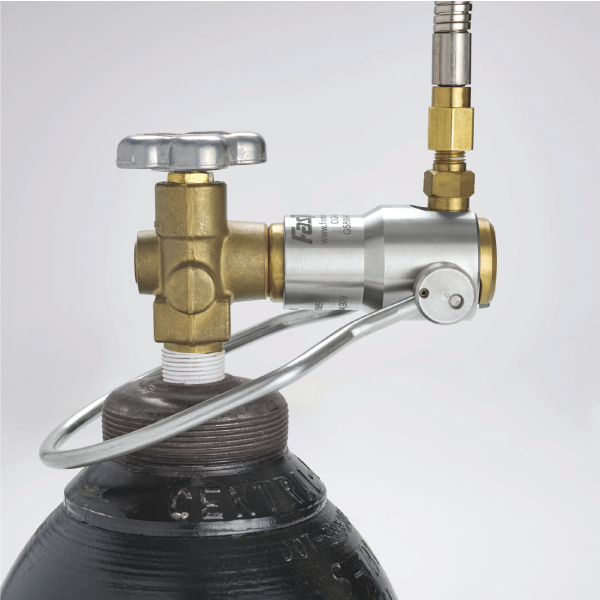

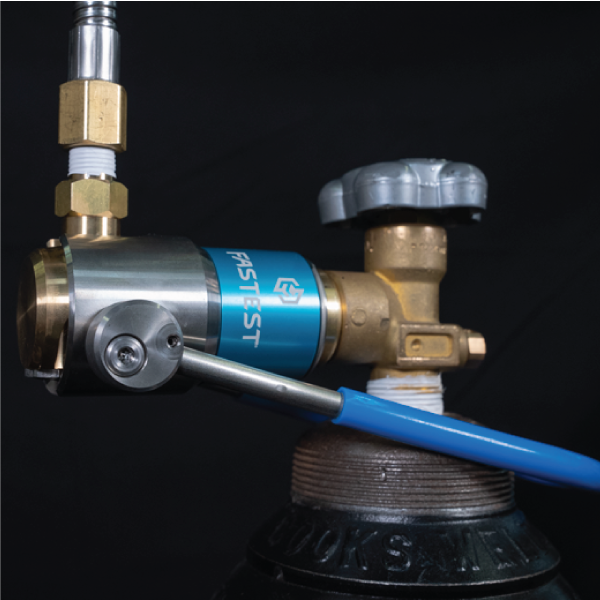

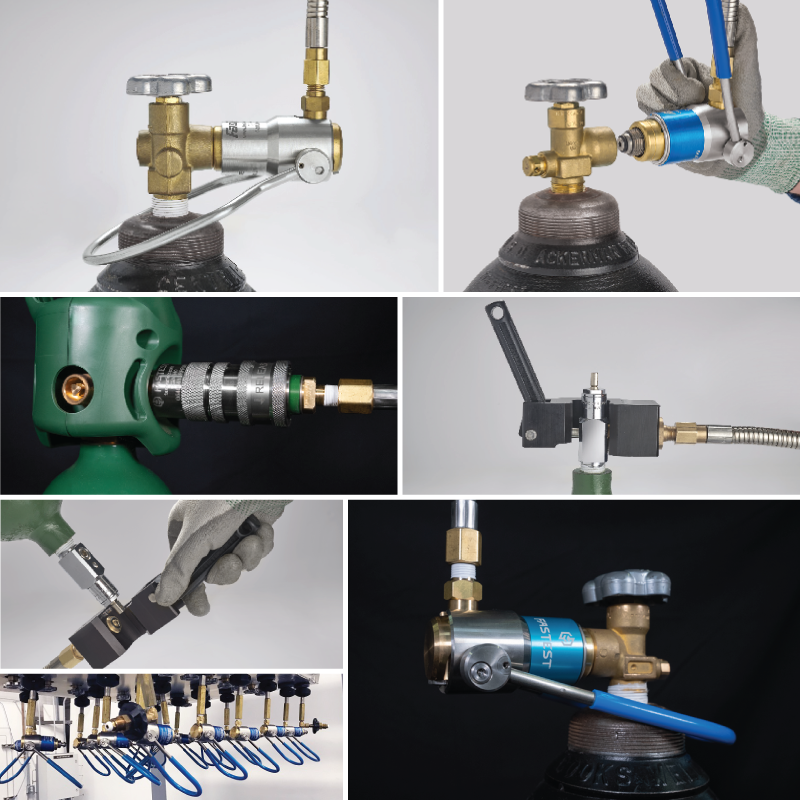

Push connector on, rotate bail handle over valve for connection. No wrenches or twisting needed. The handles are available in many sizes to fit applications filling with: standard valves, RPV valves, valve guards, valves with integrated pressure regulators, and 6 or 12 packs.

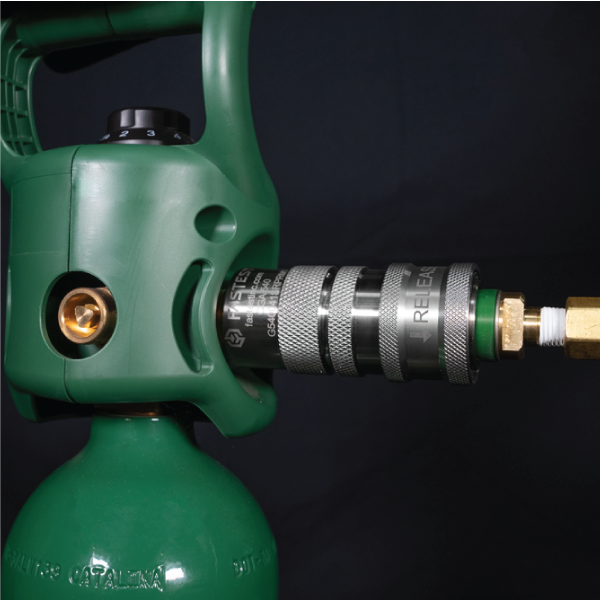

Simply push on and pull off. Pressure locks the connector on during the fill process. Great for small medical applications filling valves with integrated pressure regulators.

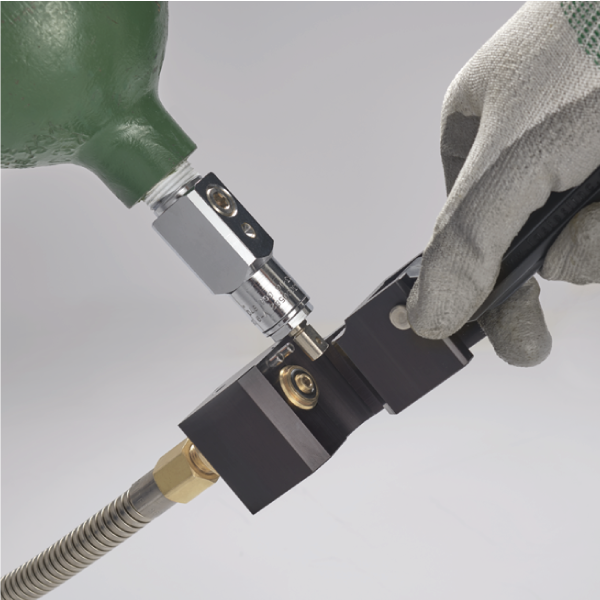

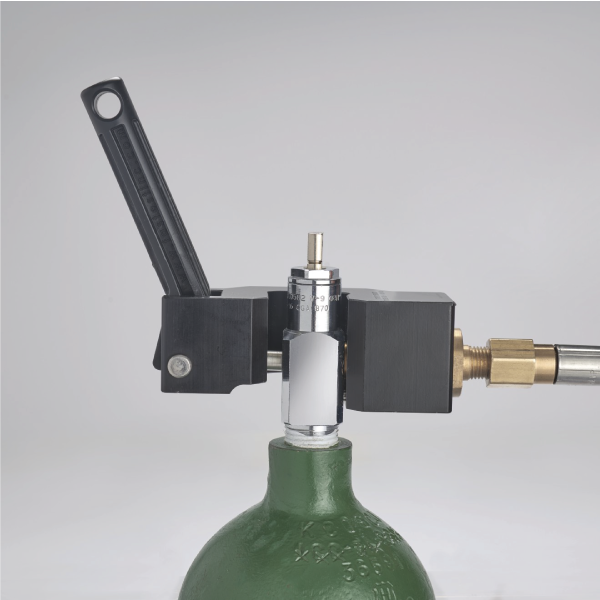

The FasTest MediMate is the industry standard solution for filling small medical cylinders with post valves. Position the connector aligning the pins into the valve, then cam over the handle to connect.
We transform connection tools into tailor-made solutions to fit your exact requirements. Our team of engineers will work with you to identify and design the optimal connection tool for your testing needs. Having difficulty sealing a unique port? Issues with clearance? Work with our dedicated team of custom experts to build your perfect solution.
Discover how FasTest's innovative Compressed Gas Connection Tools can elevate your cylinder filling process. Fill out this form to learn more and boost your productivity today!
FasTest offers bail-handle, sleeve-locking, and yoke (MediMate®) compressed gas filling connectors for industrial, medical, and specialty gas operations. Connectors are available for CGA, NF, BS, DIN, and UNI valve standards, and are compatible with nitrogen, oxygen, CO2, air, argon, inert gases, oxidizers, and flammable gases.
FasTest compressed gas filling connectors are available for all major international valve standards: CGA (Compressed Gas Association, North America), NF (France), BS (British Standards), DIN (Germany), and UNI (Italy). Custom configurations for other valve standards are available through our engineering team.
FasTest connectors typically reduce per-cylinder connection time by approximately 90%—from 15–30+ seconds with traditional threaded pigtails to 2–3 seconds with FasTest’s no-twist design. On a fill line processing hundreds of cylinders per shift, this translates to significant additional fill capacity.
Bail-handle connectors use a rotating handle to lock onto the valve—most versatile for industrial applications. Sleeve connectors use a push-on/pull-off mechanism with pressure locking—fastest connection for small cylinders. Yoke (MediMate®) connectors use pin alignment and cam-over handle—the industry standard for medical post-valve cylinders. The right choice depends on your valve type, cylinder size, and operation.
Yes. FasTest compressed gas filling connectors are designed for use with flammable gases including hydrogen, acetylene, and flammable gas mixtures. The patented safety locking mechanism prevents accidental separation under pressure, and seal materials are selected for compatibility with the specific gas type.
MediMate® is FasTest’s industry-standard yoke connector for filling small medical cylinders with pin-index post valves. It is widely used by medical gas distributors and fill plants for medical oxygen, nitrous oxide, medical air, and specialty medical gas mixtures.
Traditional threaded pigtail connections require repetitive wrenching motions that cause upper-extremity strain injuries over time. FasTest’s no-twist, one-handed connection eliminates these motions entirely, reducing the primary cause of repetitive strain injuries in fill plant operations.
FasTest compressed gas filling connectors typically pay for themselves within months through faster fill cycles (more cylinders per shift), reduced injury costs (fewer workers’ compensation claims), and decreased gas loss from tighter seals. The specific payback period depends on your fill volume, number of fill points, and current connection method.
Yes. FasTest has a dedicated custom engineering team that designs compressed gas filling connectors for non-standard valve configurations, unique clearance requirements, and specialized filling applications. Start with an Application Evaluation for a recommendation.
FasTest connectors are engineered for production-grade durability, typically lasting tens of thousands of fill cycles with basic seal maintenance. Replacement seal kits and maintenance parts are readily available, and many standard products ship within 48 hours.
Yes. FasTest offers bail-handle configurations with handle geometries specifically designed to work within valve guards without requiring guard removal—saving time on every connection and reducing the risk of guard damage.
