Leak-tight, secure connections for aerospace tubes, valves, engines, castings, and assemblies. Quick-connect sealing tools rated to 10,000 psi (689 bar) that eliminate thread damage, sealant, and wrenches from your test process.
Aerospace manufacturing and MRO demand the highest standards of test accuracy, repeatability, and documentation. Every tube assembly, casting, hydraulic component, fuel system part, and engine sub-assembly must be verified to exacting specifications before it enters service—and the connection tooling used in that verification must be as reliable as the components it’s testing.
FasTest aerospace connectors are designed for this environment. Our quick-connect sealing tools attach directly to aerospace tubes, fittings, flanges, ports, and valve connections without wrenches, thread tape, or sealant—eliminating the thread damage, contamination risk, and inconsistent seals that traditional threaded test connections introduce. With pressure ratings up to 10,000 psi (689 bar), compatibility with aerospace fluids and gases, and custom engineering for non-standard port geometries, FasTest provides the connection tooling that aerospace manufacturers and MRO facilities rely on for accurate, repeatable aerospace leak testing and aircraft component testing.
Whether you’re proof testing hydraulic tube assemblies, leak testing castings for porosity, performing fuel system flow verification, fuel flow testing, calibrating pitot-static systems, or testing engine components, FasTest has the standard and custom aerospace connectors and aerospace tube connectors to improve your testing process.
Ergonomic designs reduce stress injuries and improve productivity. A perfect connection to any type of aerospace testing application.
Designed for high volume production testing with test pressures up to 10,000 psi (689 bar).
Connect and seal instantly.
Test more, quicker.
Easy-to-use Connector operation - no wrenches, tape or sealants for a leak tight seal.
We transform connection tools into tailor-made solutions to fit your exact requirements. Our Team of engineers will work with you to identify and design the optimal Connection Tool for your testing needs. Having difficulty sealing a unique port? Issues with clearance? Work with our dedicated team of Custom Experts to build your perfect solution.
ICON™ brings process automation and traceability to aerospace test stations. For aerospace manufacturers running automated or semi-automated test cells, ICON™-equipped connectors provide digital seal confirmation (SURE SEAL™) that verifies a leak-tight connection before pressurized media is introduced—a safety and quality advantage at any pressure, but especially critical at the 3,000–10,000 psi levels common in aerospace hydraulic testing.
ICON™ also supports the traceability requirements of aerospace quality systems by outputting real-time connection status data for process documentation, step completion confirmation for multi-port test sequences, and digital records that support AS9100, Nadcap, and customer-specific quality documentation requirements.
Can't find what you need? We either have it or can make it.
Fill out this form to get in contact with a FasTest Connection Expert.
| Application | FasTest Connection Approach |
|---|---|
| Hydraulic Tube Assemblies | Grip-and-seal aerospace tube connectors for aerospace hydraulic tube assembly proof testing and aerospace leak testing. Quick-connect to AN, MS, AS, and proprietary aerospace fitting configurations at pressures up to 10,000 psi (689 bar). Eliminates wrench-on connections that risk thread damage to flight-critical fittings. |
| Casting Porosity Testing | Connectors for aerospace leak testing of aluminum, magnesium, and titanium aerospace castings. Sealing to machined and as-cast surfaces for pressure decay and helium mass spectrometer porosity detection. Custom fixtures for multi-port casting geometries. |
| Fuel System Components | Connectors for fuel line assembly testing, fuel valve leak testing, fuel manifold flow verification, and fuel tank integrity testing. Compatible with Jet A, JP-8, and other aviation fuels. Connections for both low-pressure fuel transfer circuits and high-pressure fuel injection systems while supporting accurate fuel flow testing. |

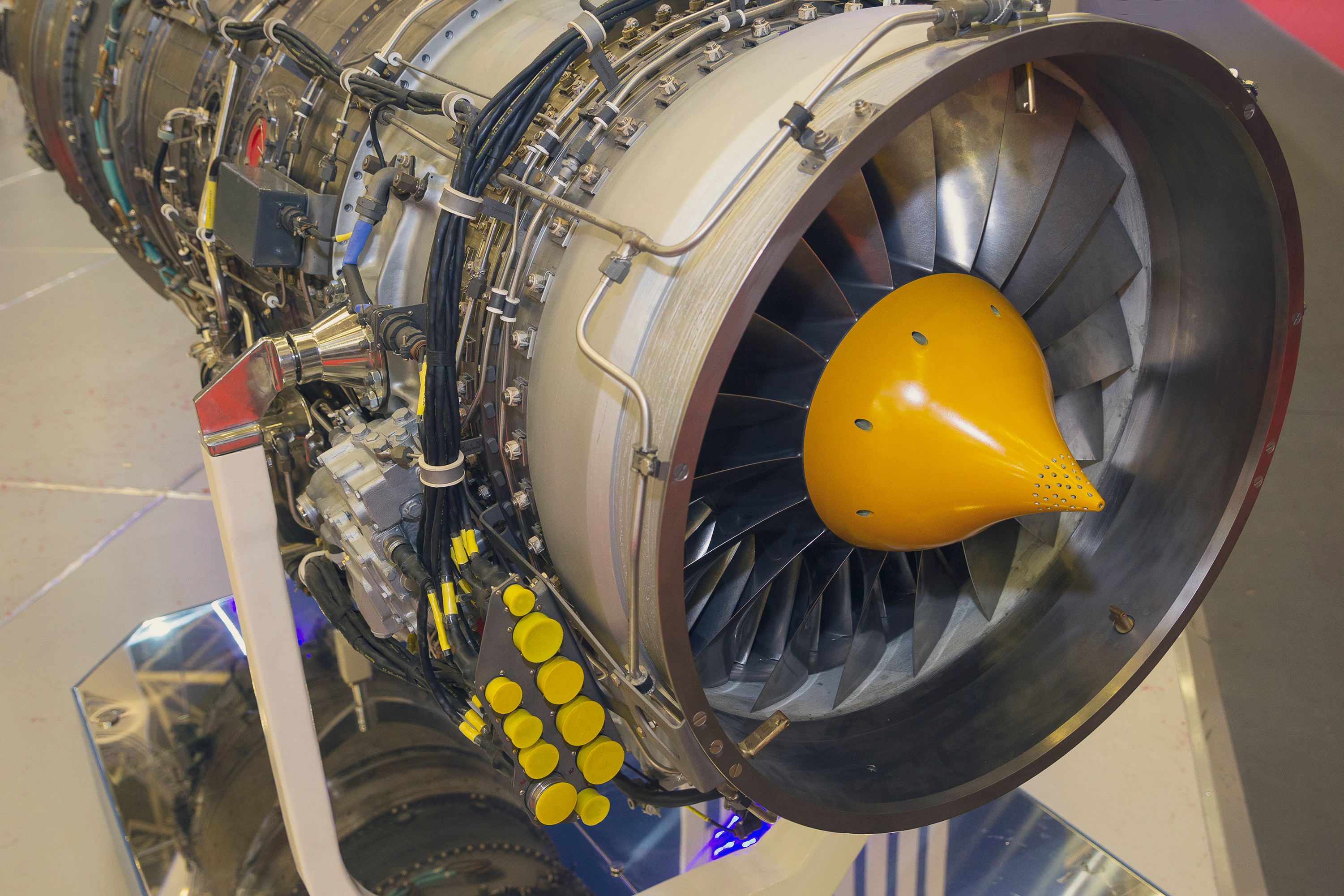

| Engine Components | Connectors for turbine engine and piston engine component testing—oil system leak testing, bleed air circuit verification, fuel nozzle flow testing, and combustor/turbine housing seal testing. Custom connectors for non-standard engine port geometries. |
| Actuators (Hydraulic & Pneumatic) | Connectors for flight control actuator testing, landing gear actuator proof testing, and thrust reverser actuator seal verification. High-pressure connectors rated for actuator test and proof pressures. |
| Valves & Control Components | Connectors for servo valve testing, check valve leak testing, pressure relief valve verification, flow control valve calibration, and shuttle valve seal testing. Sealing to AN, MS, and proprietary aerospace valve port standards. |
| Environmental Control Systems (ECS) | Connectors for cabin pressurization system testing, bleed air duct leak testing, heat exchanger integrity verification, and ECS valve testing. Connections for both pressure and vacuum testing of ECS components. |
| Pitot-Static Systems | Connectors for pitot tube and static port calibration, air data system testing, and pitot-static line leak verification. Precision sealing for the low-differential-pressure measurements critical to air data accuracy. |
| Landing Gear Systems | Connectors for landing gear strut testing, brake system proof testing, hydraulic accumulator testing, and wheel assembly seal verification. High-pressure connectors for strut proof test pressures. |
| Pneumatic Systems | Connectors for aircraft pneumatic system leak testing, bleed air manifold testing, and pneumatic valve verification. Sealing to tubing, fittings, and manifold ports for pressure decay and flow testing. |
| Ground Support Equipment (GSE) | Connectors for testing and maintaining ground support hydraulic and pneumatic systems—towbars, aircraft jacks, ground power units, and conditioning carts. FasTest aerospace connectors improve test speed and reliability for GSE maintenance operations. |
| Space & Defense Systems | Custom aerospace connectors for propulsion system testing, satellite component leak testing, missile system seal verification, and other defense-specific applications. FasTest’s custom engineering team works with defense contractors on classified and non-classified projects. |
Aerospace testing operates under constraints that most other manufacturing industries don’t face. The connection tooling used in these tests must meet the same standards of precision, reliability, and documentation as the components being tested.
A: FasTest provides aerospace leak testing connectors for hydraulic tube assemblies, casting porosity testing, fuel system components, engine components, actuators, valves and control components, environmental control systems, pitot-static systems, landing gear systems, pneumatic systems, ground support equipment, and space/defense systems.
A: FasTest aerospace connectors are available with pressure ratings up to 10,000 psi (689 bar), covering the full range of aerospace hydraulic proof test, leak test, and functional test pressures. Specific pressure ratings vary by product series and configuration.
A: FasTest’s quick-connect design seals using an engineered internal seal mechanism—not by threading onto the fitting. The connector grips and seals without wrenching, torquing, or rotating on AN, MS, or other aerospace fittings. This eliminates the cross-threading, galling, and overtorque damage that traditional threaded test connections cause.
A: Yes. FasTest provides seal material options compatible with aerospace hydraulic fluids (MIL-PRF-5606, MIL-PRF-83282, MIL-PRF-87257, Skydrol), jet fuels (Jet A, JP-8), and aerospace pneumatic media. Our engineering team recommends the right seal material for your specific fluid and application.
A: Yes. FasTest’s custom engineering team has deep experience designing connectors for non-standard aerospace port geometries, specialty alloy components, unusual clearance constraints, and multi-port test fixtures. Start with an Application Evaluation for a custom recommendation.
A: Yes. FasTest aerospace connectors are available in manual and pneumatically operated configurations. ICON™ technology provides the digital seal confirmation and PLC integration needed for automated test cells, including step completion handshakes and traceability data output.
A: Yes. FasTest connectors seal using precision-engineered internal seals—no thread tape, pipe dope, or any other sealant is required. This eliminates the contamination risk that sealant residue introduces to hydraulic, fuel, and pneumatic systems.
A: FasTest is ISO 9001:2015 certified, and ICON™ technology provides the traceability data (connection verification, step completion, real-time status) that supports AS9100, Nadcap, and customer-specific quality documentation requirements in aerospace manufacturing and MRO.
A: Yes. FasTest provides production-grade connectors for OEM aerospace manufacturing lines as well as versatile, easy-to-use tools for MRO bench testing and overhaul operations. Our standard product line covers most aerospace fitting standards, and custom solutions handle everything else.
A: Use the product finder on this page to filter by connection type and pressure rating, or submit a free Application Evaluation with your port specifications, test pressure, and fluid. A FasTest aerospace engineer will recommend the right standard or custom solution.
