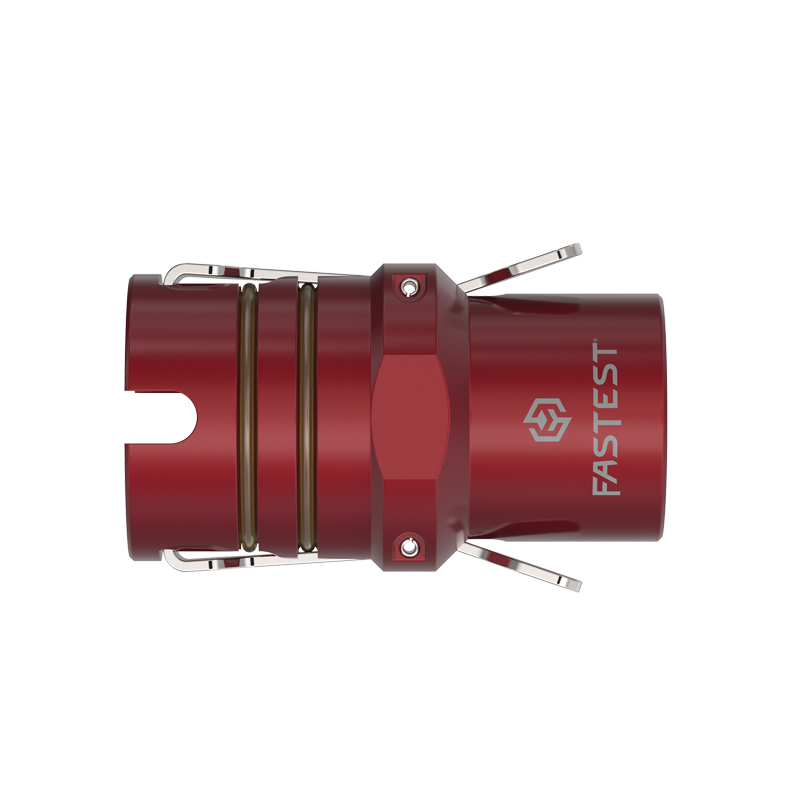

VDA External Sealing Connection Tool
Seal-only connector designed for fast repeatable leak testing of VDA standard ports.
- Ergonomic quick connection actuation provides significant time savings
- Simple actuation minimizes repetitive motions for Electric Vehicle system testing
- Dual main seals for thermodynamic functional tests
- Multiples sizes available for many VDA standards
- Light weight design makes tool easy to use for operators
Designed For: VDA standard port sizes
VDA Datasheet: Click Here
VDA Operating Instructions: Click Here
The Quick-Connect VDA Connector for EV Thermal Testing
The FasTest VDA connector is an external sealing quick connector built for VDA connector standard ports — the standardized port and quick-connect geometries widely used on electric-vehicle thermal and coolant systems. Instead of threading a fitting or relying on static VDA plugs, the operator makes a sealed VDA connection in a single ergonomic lever motion, then releases it just as fast for the next part.
As a VDA quick connector, the tool is engineered for the speed and repetition of EV production testing. The ergonomic, lightweight design provides significant time savings and minimizes the repetitive motion of high-volume electric-vehicle system testing, while dual main seals deliver the reliable sealing required for thermodynamic functional tests on coolant and thermal-management components.
Multiple sizes are available to match many VDA connector standards, so a single tool family covers the range of VDA standard ports across an EV thermal system. Rated to 150 psi (10.3 bar), the FasTest VDA connector is purpose-built for the leak, pressure, and functional testing that EV coolant and thermal-management manufacturing demands.
For EV battery, motor, inverter, and coolant-loop test lines, the VDA quick connector standard approach removes the connection step as a bottleneck — delivering a fast, repeatable, operator-friendly seal at every VDA test point while protecting the port from the wear that threaded connections cause.
The Problem the VDA Connector Solves
Testing VDA standard ports on EV thermal systems presents challenges that threaded fittings and static plugs can’t meet:
-
VDA ports need a matched seal: VDA connector standard ports have specific geometries. A generic adapter won’t seal them reliably, and the wrong fit causes leaks and false failures on thermal-system tests.
-
VDA plugs aren’t test tools: VDA plugs typically seal a port for shipping or service — a static, one-time seal. They’re not designed for the thousands of fast connect/disconnect cycles a production test line requires.
-
Repetitive motion slows EV lines: EV thermal systems have many ports to test at high volume. Threaded connections or fiddly fittings cause operator strain and cap throughput across a shift.
-
Thermal tests demand reliable sealing: Thermodynamic functional tests stress the seal across temperature and pressure. A single-seal or loose connection produces inconsistent, unreliable results.
The FasTest VDA connector solves all of this: a VDA quick connector matched to VDA connector standard ports, dual main seals for thermodynamic tests, and an ergonomic, lightweight, reusable design built for high-volume EV production testing.
Key Features — Expanded
Ergonomic VDA Quick Connector Actuation
The FasTest VDA connector makes a sealed connection with a single ergonomic lever motion — no threading, no tools. As a VDA quick connector, it provides significant time savings over threaded fittings or static VDA plugs, letting operators connect and release in seconds at every VDA standard port on the part.
Simple Actuation Minimizes Repetitive Motion
EV thermal system testing involves many connections per part and high daily volumes. The VDA connector’s simple lever actuation minimizes the repetitive motion of electric-vehicle system testing, reducing operator strain and supporting consistent, fast cycles across a full production shift.
Dual Main Seals for Thermodynamic Tests
Dual main seals give the FasTest VDA connector the sealing reliability that thermodynamic functional tests require. Across the temperature and pressure conditions of EV coolant and thermal-management testing, the dual-seal design holds a leak-tight connection for accurate, repeatable results.
Multiple Sizes for Many VDA Connector Standards
The VDA connector is available in multiple sizes to match many VDA connector standards, so a single tool family covers the range of VDA standard ports found across an EV thermal system. This VDA quick connector standard coverage simplifies tooling and lets one approach handle many test points.
Lightweight, Operator-Friendly Design
A lightweight design makes the FasTest VDA connector easy to handle through long testing sessions. Combined with the ergonomic lever and quick-connect action, the lightweight build keeps high-volume VDA port testing fast and comfortable for operators — an important factor in repetitive EV production environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | External sealing VDA quick connector for VDA connector standard ports. |
| Connects To | VDA standard sizes — the standardized VDA connector ports used on EV thermal and coolant systems. |
| Sizes | Multiple sizes available to match many VDA connector standards. |
| Sealing | Dual main seals for thermodynamic functional tests. |
| Max Pressure Rating | Vacuum to 150 psi (10.3 bar). |
| Actuation Method | Lever — ergonomic, quick-connect actuation. |
| Actuation Type | VDA ports. |
| Design | Lightweight, ergonomic, operator-friendly for high-volume EV testing. |
| Primary Application | Electric-vehicle thermal, coolant, and thermodynamic functional testing. |
| Target Industries | Automotive / EV — battery, motor, inverter, and coolant-loop test lines. |
| Documentation | VDA datasheet and operating instructions available for download. |
Where the VDA Connector Is Used
EV Coolant & Thermal-Management Testing
The FasTest VDA connector seals to the VDA standard ports on EV coolant loops and thermal-management components for leak, pressure, and thermodynamic functional testing. Its dual seals and quick-connect action make it well suited to the high-volume thermal testing at the heart of EV manufacturing.
Battery Pack Thermal-Loop Testing
EV battery packs rely on coolant loops with VDA connector standard ports that must be leak and pressure tested. The VDA quick connector makes fast, sealed connections to these ports, supporting battery thermal-system testing without the wear or slow cycles of threaded connections.
Motor & Inverter Cooling Testing
Electric motor and inverter cooling circuits use VDA standard ports for thermal management. The FasTest VDA connector connects to these ports quickly and seals reliably for the functional and leak testing of EV powertrain cooling systems.
High-Volume EV Production Lines
Across EV production, the lightweight, ergonomic VDA connector keeps high-volume VDA port testing fast and operator-friendly. Its quick-connect action and multiple-size coverage make it a single, repeatable solution for the many VDA test points on an electric vehicle.
FasTest VDA Connector vs. a Threaded Adapter or VDA Plug
| Threaded Adapter / VDA Plug | FasTest VDA Connector | |
|---|---|---|
| Connection Time | Slow thread, or static plug not for testing | Seconds — ergonomic quick-connect lever |
| Reusability | VDA plugs are static, one-time seals | Reusable test tool for thousands of cycles |
| Port Wear | Threading wears the VDA port | Quick-connect seal protects the port |
| Thermal Tests | Single seal varies under temperature | Dual main seals for thermodynamic tests |
| Operator Strain | Repetitive threading | Lightweight, ergonomic, low-strain |
| Size Coverage | One adapter per port | Multiple sizes for many VDA standards |
| EV Throughput | Connection step caps line speed | Fast connection removes the bottleneck |
| Fit to VDA Standard | Generic adapters may not seal | Matched to VDA connector standard ports |
Frequently Asked Questions
Q: What is a VDA connector?
A: A VDA connector is a sealing tool that connects to VDA standard ports for leak, pressure, and functional testing. The FasTest VDA connector is a quick-connect, lever-actuated tool designed for EV thermal and coolant system testing, with dual main seals and a lightweight, ergonomic design.
Q: What is the VDA connector standard?
A: VDA refers to standardized port and quick-connect geometries widely used in automotive and EV coolant and thermal systems. FasTest offers the VDA connector in multiple sizes to match the common VDA connector standards across an EV thermal system.
Q: What is a VDA quick connector?
A: A VDA quick connector seals to a VDA standard port with a fast, tool-free action rather than threading. The FasTest VDA quick connector uses an ergonomic lever to connect and release in seconds, making it ideal for high-volume EV production testing.
Q: How is the VDA quick connector different from VDA plugs?
A: VDA plugs typically seal a port for shipping or service — a static, one-time seal. The FasTest VDA quick connector is a reusable test tool that seals and releases in seconds for repeated, high-volume testing, with dual seals for thermodynamic functional tests.
Q: What pressure does the VDA connector handle?
A: The FasTest VDA connector is rated for vacuum to 150 psi (10.3 bar), with dual main seals suited to the thermodynamic functional tests used on EV coolant and thermal-management systems.
Q: What is the VDA quick connector standard coverage?
A: The VDA connector is available in multiple sizes to match many VDA connector standards, so a single tool family covers the range of VDA standard ports found across an EV thermal system.
Q: Why does the VDA connector use dual main seals?
A: Dual main seals provide the sealing reliability that thermodynamic functional tests require, holding a leak-tight connection across the temperature and pressure conditions of EV thermal-system testing.
Q: Is the VDA connector suited to high-volume testing?
A: Yes — its ergonomic quick-connect lever, lightweight design, and simple actuation minimize repetitive motion and provide significant time savings, making it ideal for high-volume EV production test lines.
Q: What EV systems use the VDA connector?
A: EV coolant loops, battery pack thermal loops, and motor and inverter cooling circuits — anywhere VDA standard ports are used for thermal management and require leak, pressure, or functional testing.
Q: What does the FasTest VDA connector connect to?
A: VDA standard sizes — the standardized VDA connector ports used on electric-vehicle thermal and coolant systems. Multiple sizes are available to match many VDA connector standards.
