EZ Connect™ ZF | External Wide-Tolerance Connection Tool
Self-aligning external sealing tool for tube features with broad diameter tolerance and quick seal replacement.
- Wide tolerance sealing fits a range of tube diameters/features.
- Self aligning connector requires no operator adjustment.
- Color coded handles to assist operator in proper tool identification.
- Quick and easy seal replacement to minimize down time, maintenance, and tool inventory.
Designed For: pressure testing, vacuum testing, fluid filling, flushing applications, and other related processes.
Product Video: Watch Here
Similar Products
FE External Sealing Connection Tool
Pneumatic seal-only connector for fast leak-tight external connections to tubes and threads in automated and semi-automated test processes.
FEG External Cradle Connection Tool
Pneumatic external sealing tool with a custom cradle for flanged ports turbo housings and irregular profiles.
70 External Tube Feature Connection Tool
Custom sleeve-actuated grip-and-seal tool for formed tube features and other specialized external profiles.
JXL External Lever-Actuated Connection Tool
Manual lever-actuated grip-and-seal connector for smooth straight and swaged tube applications.
MBE / MRE Expanded Tube Connection Tool
Custom sleeve-actuated ball- or ring-grip connector that latches over expanded tube features for HVAC-R processing.
One Tool Across a Range of Formed and Bead Tubes
The FasTest EZ Connect™ ZF is a sleeve-actuated external sealing tool for formed and bead tubes, sealing from vacuum up to 300 psi (21 bar). It is the external member of the EZ Connect wide-tolerance family, and its defining characteristic is in the name of that family: it seals across a range of tube diameters and features rather than being matched to a single size.
That matters because of how formed and bead tubes are made. Forming and bead-rolling are mechanical processes with real dimensional spread — two nominally identical tubes can differ enough at the sealing feature to trouble a fixed-geometry connector. A connector cut to one diameter then either seals some parts and not others, or forces a separate tool for each variation. The ZF’s wide-tolerance seal absorbs that spread, so one tool covers a band of sizes and a population of parts that a fixed connector would split into several.
Two features make it practical on a line. The ZF is self-aligning, so it requires no operator adjustment to make a good connection — the tool accommodates the part rather than the operator dialling it in. And the handles are color-coded, so where a line runs several ZF variants for different tube sizes, an operator can identify the right tool at a glance instead of by trial. Together they keep a wide-tolerance tool from trading its flexibility for fiddliness.
The seal is the wear item on any sealing connector, and the ZF is built for quick and easy seal replacement — which minimizes downtime, maintenance, and the spare-tool inventory a line would otherwise hold to cover changeovers. The ZF is used for pressure and vacuum testing as well as fluid filling and flushing, so it is a processing tool as much as a test connector.
The Problem the FasTest EZ Connect™ ZF Solves
Sealing to formed and bead tubes in production raises problems a fixed-diameter connector does not answer:
- Formed tubes vary: Forming and bead-rolling introduce dimensional spread, so a connector matched to one exact diameter fits some parts and struggles with others across a real production population.
- A tool per size multiplies inventory: Covering a range of tube diameters with fixed connectors means one tool per size — more tooling to buy, store, track, and change between.
- Operator adjustment is a variable: A connector that needs dialling in makes connection quality depend on the operator, which is exactly the variability a validated test is trying to remove.
- Picking the wrong tool costs time: On a line running several tube sizes, an operator reaching for the wrong connector means a failed or re-run connection and lost cycle time.
- Seal changes stop the line: The seal wears on any sealing tool. If replacing it is slow, the tool — and the station — is out of service while it happens.
The FasTest EZ Connect™ ZF answers each: wide-tolerance sealing covers a range of diameters from one tool, self-alignment removes operator adjustment, color-coded handles make tool identification immediate, and quick seal replacement keeps downtime and spare inventory low.
Key Features
Wide-Tolerance Sealing Across a Range of Tube Diameters and Features
The FasTest EZ Connect™ ZF seals across a range of tube diameters and features rather than being matched to a single size. On formed and bead tubes — where the sealing feature carries the dimensional spread of the forming process — that means one tool covers a band of parts a fixed connector would divide into several, and accommodates the normal variation within a production run without a connection failing because a tube came out slightly over or under nominal.
Self-Aligning — No Operator Adjustment Required
The ZF aligns itself to the tube, so no operator adjustment is needed to make a good connection. The tool accommodates the part instead of the operator setting it up each time, which keeps connection quality consistent across operators and shifts and removes a step from every cycle.
Color-Coded Handles for Tool Identification
The handles are color-coded so operators can identify the correct tool at a glance. On a line running several ZF variants for different tube sizes, that turns tool selection from a point of error into an immediate visual check — the right tool is picked up the first time, not after a connection fails.
Quick and Easy Seal Replacement
The seal is the consumable on any sealing connector. The ZF is designed so it can be replaced quickly and easily, which minimizes downtime when a seal reaches the end of its life, reduces the maintenance burden, and lowers the spare-tool inventory a line would otherwise carry to cover a tool being out of service. A wide-tolerance tool that also changes its own wear item quickly stays in production rather than becoming a maintenance stop.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | External, sleeve-actuated wide-tolerance sealing tool for formed and bead tube features. |
| Connects To | Bead tube | formed tube. |
| Max Pressure Rating | Vacuum to 300 psi (21 bar). |
| Actuation Method | Sleeve. |
| Sealing Range | Wide tolerance — fits a range of tube diameters and features from one tool. |
| Alignment | Self-aligning — requires no operator adjustment. |
| Tool Identification | Color-coded handles. |
| Maintenance | Quick and easy seal replacement to minimize downtime, maintenance, and tool inventory. |
| Designed For | Pressure testing, vacuum testing, fluid filling, flushing, and other related processes. |
| EZ Connect Family | ZF (external, formed/bead tubes, 300 psi) | ZN (internal, tubes and bores, wide tolerance) | ZGN (internal, threaded, 300 psi). The ZF is the external member. |

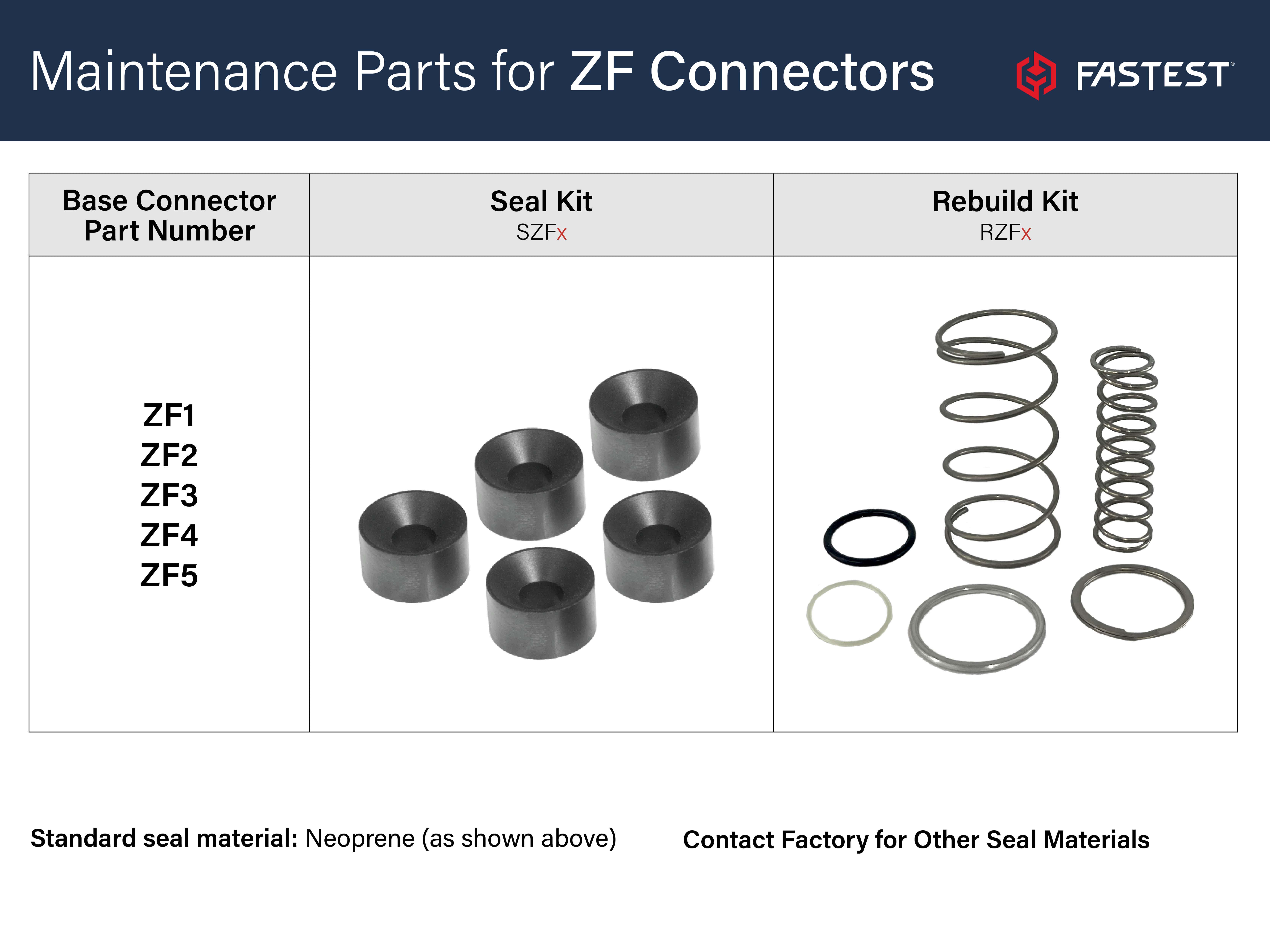

| Documentation | ZF datasheet, operating instructions, and rebuild/repair instructions, plus a product video. |
Where the FasTest EZ Connect™ ZF Is Used
Pressure Testing
The ZF makes a fast external seal to a formed or bead tube for pressure testing, with wide-tolerance sealing keeping the connection reliable across the dimensional spread of a production run. Self-alignment means the operator makes the same quality of connection every time without adjustment.
Vacuum Testing
The same connection serves vacuum testing down from atmospheric. A wide-tolerance seal that holds across a range of tube features supports the leak-tightness a vacuum test depends on, on parts that vary from the forming process.
Fluid Filling
Beyond testing, the FasTest EZ Connect™ ZF is used to connect to formed and bead tubes for fluid filling — a processing step rather than a measurement, where a quick, repeatable external connection across a range of tube sizes keeps a fill line moving.
Flushing
The ZF is also used for flushing applications, connecting to the tube to pass fluid through the part. As with filling, the value is a fast wide-tolerance connection that covers a range of tube diameters without a tool change between variants.
FasTest EZ Connect™ ZF vs. a Fixed-Diameter External Connector
| Fixed-Diameter Connector | FasTest EZ Connect™ ZF | |
|---|---|---|
| Tube Size Range | One connector per diameter | Wide tolerance — a range from one tool |
| Forming Variation | Marginal on out-of-nominal parts | Absorbed by the wide-tolerance seal |
| Tool Inventory | Grows with the number of sizes | One tool covers a band of sizes |
| Operator Setup | May need adjustment or matching | Self-aligning, no adjustment |
| Tool Identification | By memory or labelling | Color-coded handles |
| Seal Replacement | Varies — can require teardown | Quick and easy by design |
| Connection Type | Fixed to a specific tube | Formed and bead tube features |
| Uses | Typically testing | Testing, fluid filling, and flushing |
Frequently Asked Questions
Q: What is the FasTest EZ Connect™ ZF?
A: The FasTest EZ Connect™ ZF is a sleeve-actuated external sealing tool for formed and bead tubes, sealing from vacuum up to 300 psi (21 bar). It is the external member of the EZ Connect wide-tolerance family, and it seals across a range of tube diameters rather than being matched to a single size.
Q: What does the EZ Connect ZF connect to?
A: Formed tubes and bead tubes — it seals externally against the tube feature. Its wide-tolerance sealing covers a range of diameters, which suits the dimensional variation these tubes carry from the forming process.
Q: What does “wide tolerance” mean on the ZF?
A: It means the connector seals across a range of tube diameters and features rather than a single exact size. Because formed and bead tubes vary from part to part, a wide-tolerance seal keeps connections reliable across a production run and lets one tool cover a band of sizes a fixed connector would divide into several.
Q: Is the EZ Connect ZF a quick-connect coupling?
A: Not in the sense of a permanent push-to-connect coupling that stays on the product. The ZF is a reusable test and process connection tool: it makes a fast sleeve-actuated external connection to a bead or formed tube for testing, filling, or flushing, then releases. If you are searching for a quick way to connect to bead tubes for pressure testing, vacuum testing, filling, or flushing, that is what the ZF does — but it is tooling, not a fitting that becomes part of the assembly.
Q: What is the pressure rating of the EZ Connect ZF?
A: Vacuum to 300 psi (21 bar).
Q: Does the ZF need operator adjustment?
A: No — it is self-aligning, so it requires no operator adjustment to make a good connection. The tool accommodates the part rather than the operator setting it up each cycle.
Q: Why are the handles color-coded?
A: To help operators identify the correct tool at a glance. On a line running several ZF variants for different tube sizes, color coding makes tool selection an immediate visual check rather than a source of error.
Q: What is the difference between the EZ Connect ZF, ZN, and ZGN?
A: All three are EZ Connect wide-tolerance connectors. The ZF is the external one — it seals onto formed and bead tube features at up to 300 psi (21 bar). The ZN is internal, sealing inside tubes and bores. The ZGN is internal for threaded ports at up to 300 psi. Choose the ZF when you are sealing to the outside of a formed or bead tube; choose the ZN or ZGN for internal connections. Contact FasTest to confirm the right one for your part.
Q: Can the EZ Connect ZF be used for more than leak testing?
A: Yes. It is used for pressure testing and vacuum testing, and also for fluid filling and flushing — so it serves as a processing connection tool as well as a test connector.
Q: How is the ZF seal replaced?
A: The ZF is designed for quick and easy seal replacement, which minimizes downtime, maintenance, and the spare-tool inventory needed to cover changeovers. Contact FasTest for the seal replacement procedure and the correct seal for your application.
