70

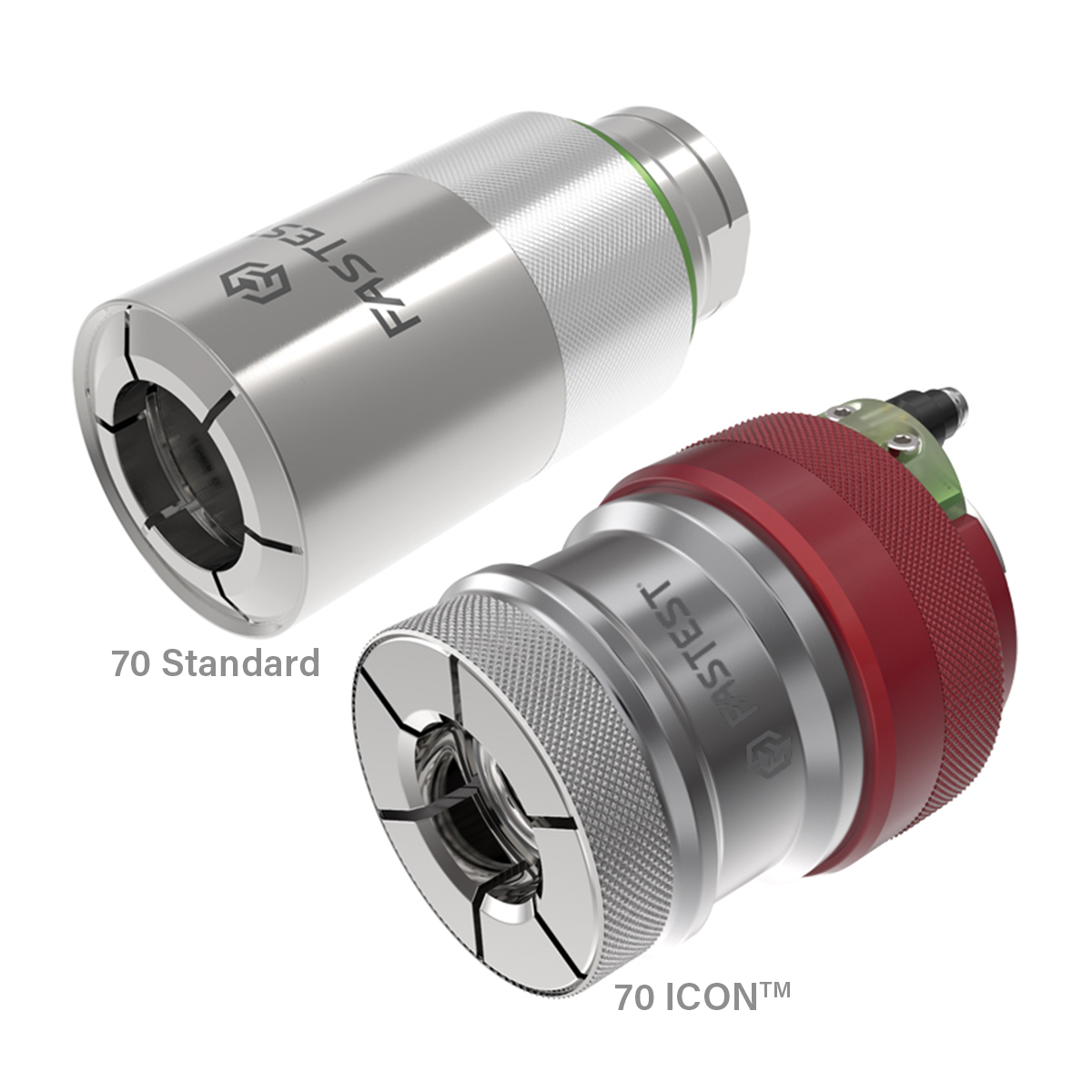

External Custom Tube Feature Connections (750 psi/51 bar)

Imperial
Metric
  • Fast, safe and repeatable connections to expanded, flared, barbed, beaded and formed end tubes.
  • Push to connect onto the threads or fitting and pull sleeve to disconnect.
  • Collet design locks securely into external threads or behind the threads.
  • Floating piston to ensure proper OD/face/ID sealing position.
  • Internal shut-off valve stops flow upon disconnection.

ICON™ | Intelligent Connection Technology

ICON™ sealing connection tools generate data and provide LED feedback to improve sealing connection accuracy, maximize production efficiency, and optimize tool maintenance. Available for select models. Learn more.

Designed For: filling, pressure testing, and leak testing.

Connects To:
Expanded | Flared | Beaded | Barbed | Form | Custom
Pressure Rating:
Vacuum to 750 psi (51 bar)
Actuation Method:
Sleeve
Application Type:
External Tube Feature

70 Datasheet: Click Here

70 ICON Datasheet: Click Here

70 Operating Instructions: Click Here

70 Main Seal Replacement: Click Here

70 Rebuild / Repair: Click Here

70 with Internal Valve Operating Instructions: Click Here

70 with Internal Valve Main Seal Replacement: Click Here

70 with Internal Valve Rebuild / Repair: Click Here

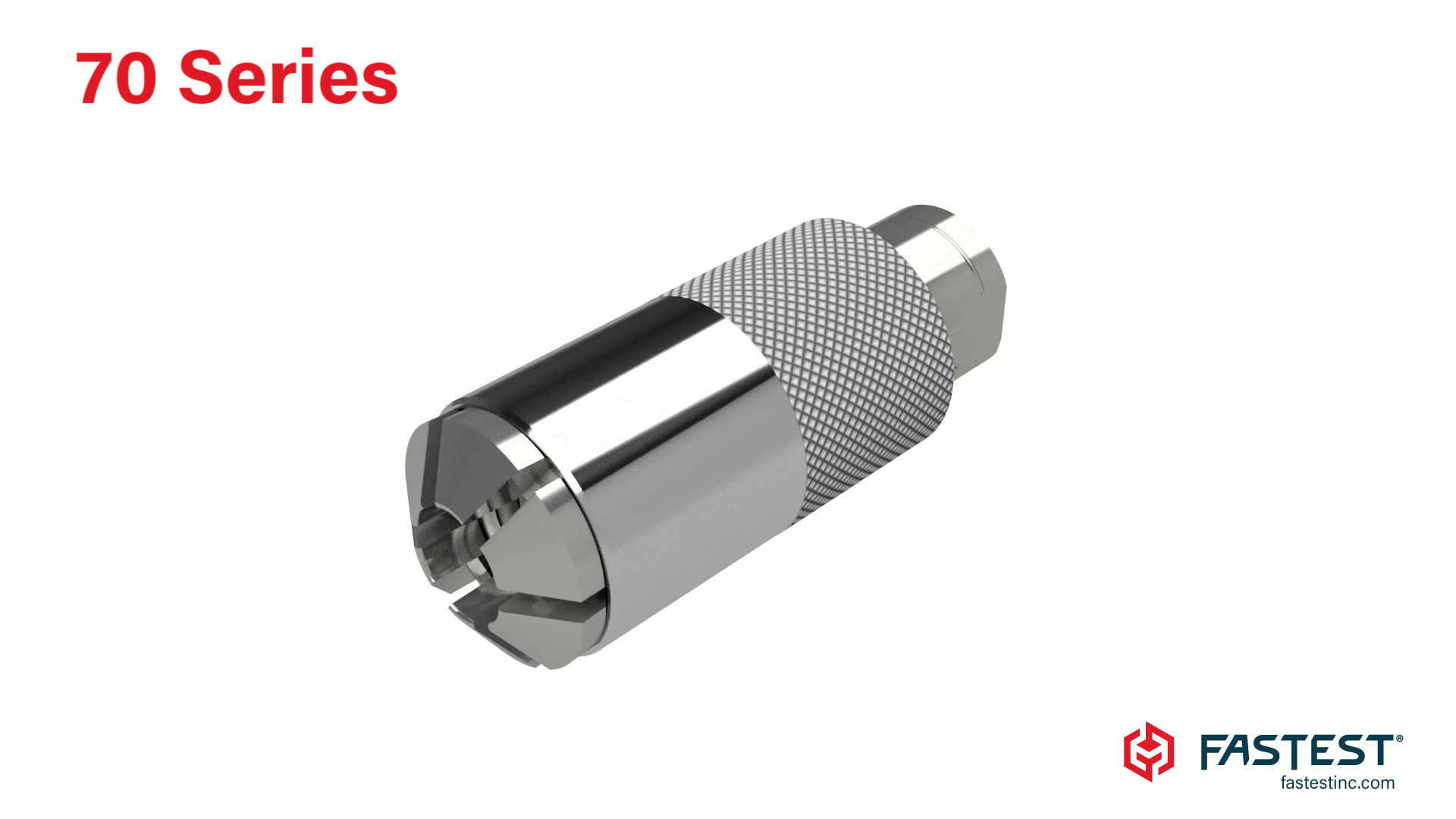

Product Video: Watch Here

Configure Your Product
