G580 Compressed Gas Connection Tool
Bail-handle connector for fast, secure, leak-free connections to CGA-580 valves used with nitrogen argon helium and inert gas service.
- Instant connections to CGA-580 valves.
- Positive pressure safety latch to prevent removal under pressure.
- Ergonomic bail handle surrounds valve for added safety.
High Purity Applications:
- Increase output of high purity cylinders at 99.9999% purity.
- Deliver an extra specialty gas batch per day!
Gas Type: Argon | Helium | Nitrogen | Inert Mixes | Air | High Purity Oxygen
FasTest Compressed Gas Handle Guide: Click Here
G-Series Internal Datasheet: Click Here
HPG Datasheet: Click Here
G-Series Internal Bail Operating Instructions: Click Here
HPG Operating Instructions: Click Here
G-Series Internal Bail Main Seal Replacement: Click Here
HPG Main Seal Replacement: Click Here
RPV Pin Removal and Installation: Click Here
Product Video: Watch Here
HPG Product Video: Watch Here
Similar Products
G540 Sleeve Compressed Gas Connection Tool
Sleeve-actuated connector for instant secure connections to CGA-540 oxygen valves.
The Quick-Connect CGA 580 Fitting for Inert Gas Cylinder Filling

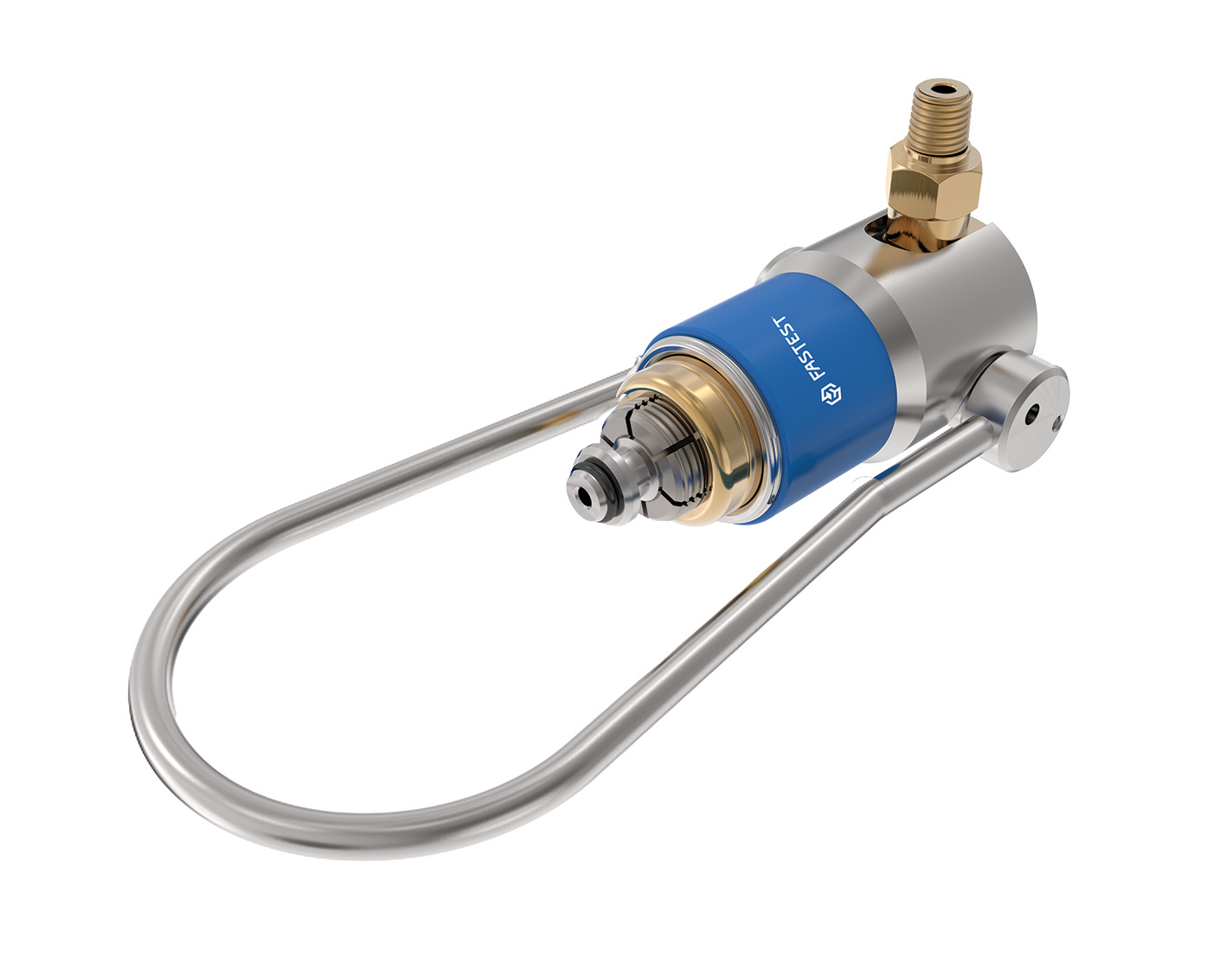

The FasTest G580 is a bail-handle, quick-connect CGA 580 fitting designed for filling and testing inert-gas cylinders — argon, helium, nitrogen, and inert mixes — fitted with CGA-580 valves. Instead of threading a connector onto the cylinder valve, the operator makes a complete CGA 580 connection in seconds: position the connector on the valve, close the ergonomic bail handle, and a positive-pressure safety latch holds the connection securely while the cylinder is under pressure.
The G580 connects to the internal threads of a CGA-580 cylinder valve and seals to 3,600 psi (248 bar). Because the connection is made by hand without wrenching, it dramatically reduces the time and repetitive strain involved in filling high volumes of cylinders, while the bail-handle surround and pressure-lock latch keep the operator protected throughout the fill cycle.
For high-purity gas producers, the HPG version of the G580 maintains gas purity to 99.9999%, helping fill operations increase cylinder output and deliver an additional specialty-gas batch per day. The G580 is part of FasTest’s G-Series compressed-gas line, which provides matched quick-connect fittings across the common CGA cylinder-valve standards.
The Problem the G580 CGA 580 Connection Solves
Filling and testing inert-gas cylinders with threaded connections creates real bottlenecks and safety concerns on a high-volume fill line:
- Slow, repetitive threading: Threading a fill connector onto every CGA-580 cylinder valve — and unthreading it after — is slow and physically repetitive across hundreds of cylinders per shift, contributing to operator fatigue and repetitive-motion strain.
- Safety under high pressure: Inert gases are filled at pressures up to 3,600 psi. A connection that can loosen or be removed under pressure is a serious hazard; threaded connections rely entirely on correct engagement and operator care.
- Purity loss in high-purity gases: Specialty and high-purity gases can be compromised by connections that introduce contamination or dead volume, reducing batch quality and yield.
- Throughput ceilings: When each connection takes 15–30+ seconds of threading, the connection step itself caps how many cylinders a fill station can process in a day.
The G580 replaces threaded fill connections with a single bail-handle CGA 580 connection that seals in seconds, locks under pressure, and — in the HPG version — protects gas purity, removing the connection step as a bottleneck.
Key Features
Instant Bail-Handle CGA 580 Connection
The G580 makes a complete CGA 580 connection in a single motion. The operator positions the connector on the CGA-580 valve and closes the bail handle to engage the seal — no thread tape, no wrenching, and no multi-turn engagement. On a fill line, this cuts the per-cylinder connection time from 15–30+ seconds of threading down to just a few seconds.
Positive-Pressure Safety Latch
A positive-pressure safety latch prevents the connector from being removed while the cylinder is under pressure. This is the single most important safety feature when filling inert gases to 3,600 psi — it eliminates the risk of an energized disconnection and ensures the connection stays secure for the entire fill cycle.
Ergonomic Bail-Handle Surround
The bail handle surrounds the valve, giving the operator a secure, ergonomic grip and a natural guard around the connection point. Closing the bail engages the seal with consistent force, removing the operator-to-operator variation that comes with hand-threaded connectors.

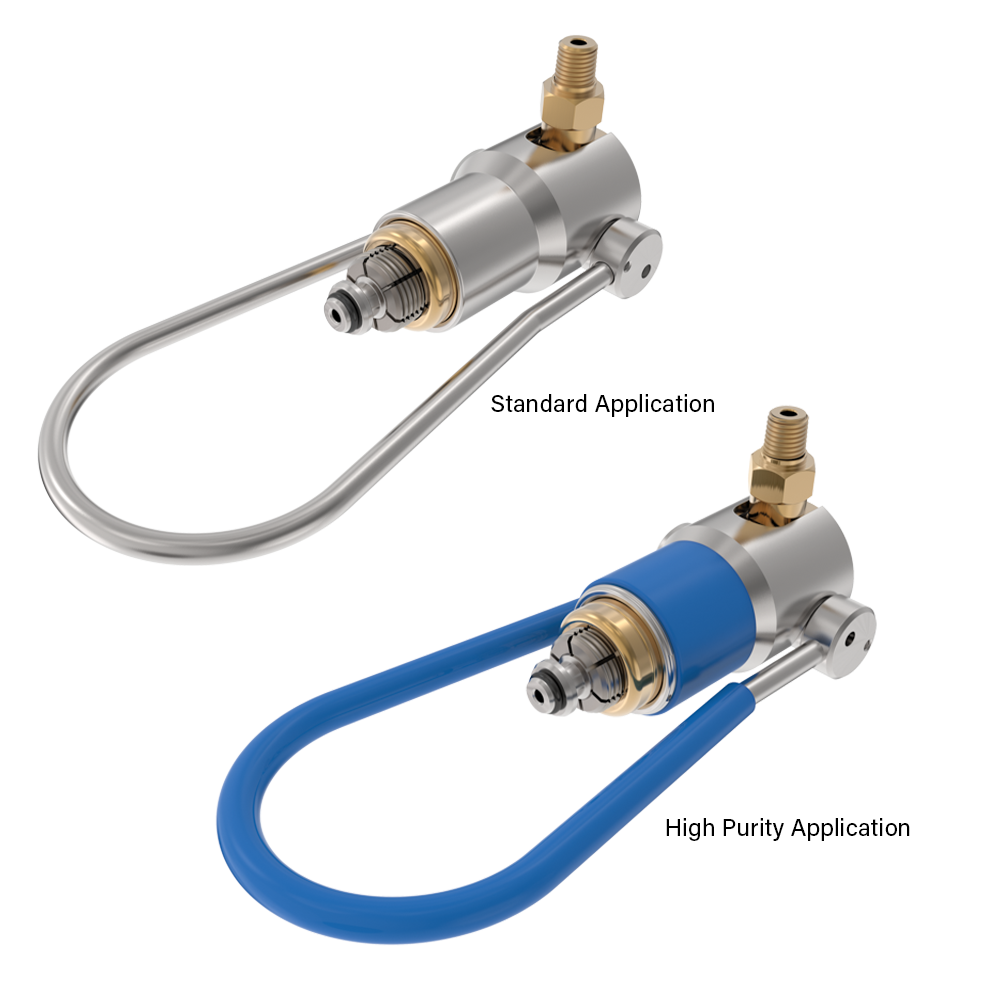

High-Purity (HPG) Option to 99.9999%
The HPG version of the G580 is engineered for high-purity gas service, maintaining purity to 99.9999%. For specialty-gas producers, this protects batch quality and supports higher daily output — helping deliver an extra specialty-gas batch per day without compromising purity.
RPV (Residual Pressure Valve) Compatibility
The G580 supports cylinders fitted with Residual Pressure Valves via an optional RPV pin, so the same CGA 580 fitting can be used across both standard and RPV-equipped CGA-580 cylinders. Installation and removal instructions for the RPV pin are provided in the product documentation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Bail-handle, quick-connect internal CGA 580 fitting for compressed-gas cylinder filling and testing. |
| Connects To | Internal-threaded CGA-580 cylinder valves (the inert-gas valve standard). |
| Gas Types | Argon, helium, nitrogen, inert mixes, air, and high-purity oxygen. |
| Max Pressure Rating | Vacuum to 3,600 psi (248 bar). |
| Actuation Method | Bail / cable / lever — hand-actuated, consistent sealing force, no wrenching. |
| Safety Features | Positive-pressure safety latch prevents removal under pressure; bail-handle surround for operator protection. |
| High-Purity Option | HPG version maintains gas purity to 99.9999% for specialty-gas applications. |
| RPV Compatibility | Optional RPV pin for cylinders equipped with Residual Pressure Valves. |
| Target Industries | Industrial gas filling, specialty gas, high-purity gas production, compressed-gas testing. |
| Documentation | G-Series Internal & HPG datasheets, operating instructions, main seal replacement, RPV pin install/removal, and rebuild/repair instructions available for download. |
Where the G580 CGA 580 Connection Is Used

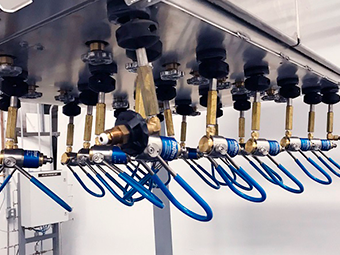

Industrial Inert-Gas Cylinder Filling
The most common application for the G580 is filling industrial cylinders of argon, helium, nitrogen, and inert mixes fitted with CGA-580 valves. The quick bail-handle CGA 580 connection lets fill operators connect and disconnect in seconds, increasing the number of cylinders processed per shift while reducing repetitive strain.
High-Purity & Specialty Gas Filling
For specialty and high-purity gas producers, the HPG version of the G580 maintains purity to 99.9999%. This protects batch integrity for analytical, electronics, and research-grade gases and helps fill lines deliver an additional specialty-gas batch per day.
Cylinder Valve Testing & Requalification
The G580 is also used to connect to CGA-580 cylinder valves for leak testing, pressure testing, and requalification, providing a fast, secure CGA 580 connection without threading wear on the valve over repeated test cycles.
RPV-Equipped Cylinder Filling
With the optional RPV pin, the G580 fills cylinders fitted with Residual Pressure Valves — increasingly common on inert-gas cylinders — using the same CGA 580 fitting across the full cylinder fleet.
G580 Quick-Connect vs. Threaded Fill Connection
| Threaded Fill Connection | G580 CGA 580 Connection | |
|---|---|---|
| Connection Time | 15–30+ seconds of threading per cylinder | Seconds — position and close the bail handle |
| Removal Under Pressure | Relies on operator care; can loosen | Positive-pressure safety latch prevents removal |
| Operator Strain | Repetitive threading/unthreading all shift | One-motion bail actuation, no wrenching |
| Thread Wear | Valve and connector threads wear over cycles | No threading — no thread wear on the valve |
| High-Purity Service | Risk of contamination / dead volume | HPG version maintains purity to 99.9999% |
| Throughput | Connection step caps cylinders per shift | Fast connection removes the bottleneck |
| RPV Cylinders | May require separate adapters | Optional RPV pin handles RPV cylinders |
Frequently Asked Questions
Q: What is a CGA 580 connection used for?
A: CGA-580 is the standard cylinder-valve connection for inert, non-corrosive, non-flammable gases — argon, helium, nitrogen, and inert mixes. A CGA 580 connection is how a fill tool, regulator, or test device attaches to those cylinder valves. The FasTest G580 makes a quick, secure CGA 580 connection for filling and testing.
Q: Is the G580 a CGA 580 fitting?
A: Yes. The G580 is a quick-connect CGA 580 fitting that seals to the internal threads of a CGA-580 cylinder valve up to 3,600 psi (248 bar), using a bail handle and a positive-pressure safety latch instead of threaded engagement.
Q: Is the G580 a CGA 580 regulator?
A: No — the G580 is a quick-connect fill and test tool, not a pressure regulator. It connects to the same CGA-580 cylinder valve outlet that a CGA 580 regulator uses, but it is designed for fast, safe connection during gas filling and testing rather than for regulating delivery pressure. If you need to control downstream gas pressure, that requires a separate regulator; the G580 handles the connection itself.
Q: Which gases use a CGA 580 connection?
A: Argon, helium, nitrogen, inert mixes, air, and high-purity oxygen — the inert and non-flammable gases assigned to the CGA-580 cylinder-valve standard.
Q: What is the maximum pressure rating?
A: The G580 is rated for vacuum to 3,600 psi (248 bar), covering the fill and test pressures typical of inert-gas cylinders.
Q: How does the G580 connect to the cylinder valve?
A: The operator positions the connector on the CGA-580 valve and closes the ergonomic bail handle, which engages the seal and makes a complete CGA 580 connection in seconds. A positive-pressure safety latch then holds the connection while the cylinder is under pressure.
Q: What is the HPG version?
A: HPG is the high-purity version of the G580, engineered to maintain gas purity to 99.9999%. It is used for specialty and high-purity gases where contamination would compromise the batch, and it helps fill lines deliver an additional specialty-gas batch per day.
Q: Can the G580 be used with RPV cylinders?
A: Yes — an optional RPV pin allows the same CGA 580 fitting to fill cylinders equipped with Residual Pressure Valves. Install and removal instructions for the RPV pin are provided in the product documentation.
Q: Is the G580 safe to use at high pressure?
A: Yes. The positive-pressure safety latch prevents the connector from being removed while the cylinder is under pressure, and the bail-handle surround provides an ergonomic guard around the connection — the two key safety features for filling inert gases to 3,600 psi.
Q: What industries use the G580?
A: The G580 is used in industrial gas filling, specialty and high-purity gas production, and compressed-gas cylinder valve testing and requalification — anywhere CGA-580 inert-gas cylinders are filled or tested in volume.
