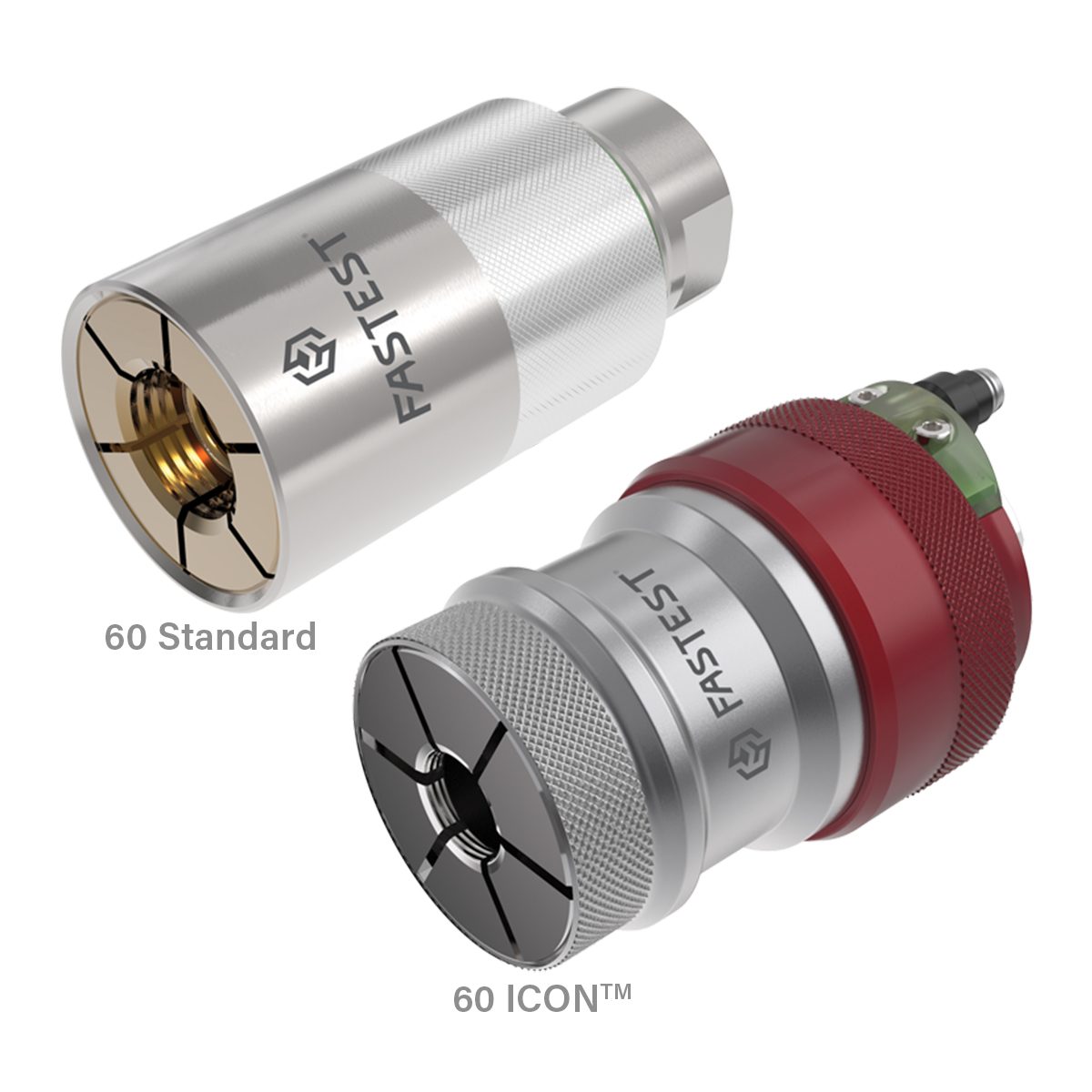

60 External Thread Connection Tool
Sleeve-actuated grip-and-seal tool for quick repeatable connections to standard and custom external threads.
- Fast, safe and repeatable connections to external threads and compression type fittings.
- Push to connect onto the threads or fitting and pull sleeve to disconnect.
- Collet design locks securely into external threads or behind the threads.
- Floating piston to ensure proper face / ID sealing position.
- Optional internal shut-off valve stops flow upon disconnection.
ICON™ | Intelligent Connection Technology
ICON™ sealing connection tools generate data and provide LED feedback to improve sealing connection accuracy, maximize production efficiency, and optimize tool maintenance. Available for select models. Learn more.
Designed For: filling, pressure testing, and leak testing.
60 Datasheet: Click Here
60 Operating Instructions: Click Here
60 Main Seal Replacement: Click Here
60 Rebuild / Repair: Click Here
60 with Internal Valve Operating Instructions: Click Here
60 with Internal Valve Main Seal Replacement: Click Here
60 with Internal Valve Rebuild / Repair: Click Here
60 ICON Datasheet: Click Here
60 ICON Operating Instructions: Click Here
60 ICON Main Seal Replacement: Click Here
60 ICON Rebuild / Repair: Click Here
Product Video: Watch Here
Similar Products
FE External Sealing Connection Tool
Pneumatic seal-only connector for fast leak-tight external connections to tubes and threads in automated and semi-automated test processes.
HPB High-Pressure External Connection Tool
Sleeve-actuated collet connector for quick secure connections to external threads and compression fittings up to 6000 psi.
FasMate® FX External High-Pressure Connection Tool
Collet-based grip-and-seal connector for threaded and custom external applications up to 5000 psi.
TwistMate® MET External Twist Connection Tool
Manual twist-to-seal connector for external threaded applications up to 10000 psi.
FasTest 60 Series: Quick-Connect External Thread Connector for Leak Testing and Filling
The Industry-Standard External Thread Quick Connector
The FasTest 60 is the most widely used quick-connect external thread connector in manufacturing leak testing. It connects to virtually every external threaded fitting and compression connection found in production testing—NPT, BSPT, BSPP, JIC 37° flare, ORFS, metric, 45° flare, compression fittings, and custom thread configurations—with a simple push-on, pull-off sleeve action rated to 750 psi (51 bar).
The FasTest 60’s sleeve actuation makes it the fastest way to connect to an external thread on a test station. The operator pushes the connector onto the thread or fitting, the internal collet grips behind the threads, and the seal engages—all in a single motion. To disconnect, pull the sleeve and lift off. No wrenching, no threading, no tools. The collet design locks securely into the threads without damaging them, and a floating piston ensures the seal is properly positioned against the face or ID sealing surface regardless of thread length variation.
For over 40 years, the FasTest 60 has been the go-to connector for automotive engine test lines, HVAC-R component testing, fluid power proof testing, aerospace tube assembly testing, appliance manufacturing, and any application where external threaded ports need fast, repeatable, non-damaging test connections. It’s the connector that built FasTest’s reputation as the industry leader in sealing connection tools—and it remains the most configured and most shipped product in the FasTest catalog.
The FasTest 60 is available with ICON™ intelligent connection technology for digital seal verification and PLC integration, and with an optional internal shut-off valve that stops flow upon disconnection for clean, drip-free operation.
Push On, Pull Off — The Sleeve Connection Explained
-
Push on: The operator pushes the FasTest 60 straight onto the external thread or fitting. The tapered entry guides the connector over the thread crest with minimal effort.
-
Collet locks: As the connector is pushed into position, the internal collet engages the threads. The collet locks behind the thread crest, gripping securely without rotating on the threads—no cross-threading, no galling, no thread damage.
-
Seal engages: The floating piston positions the internal seal against the fitting face or ID sealing surface. The seal is pressure-assisted: as test pressure increases, the seal force increases proportionally.
-
Test: The FasTest 60 is locked and sealed. Run the test—pressure decay, leak test, proof test, or filling—with confidence that the connection is secure.
-
Pull off: After depressurizing, pull the sleeve back to retract the collet and lift the connector off the fitting. The optional internal shut-off valve closes automatically upon disconnection, stopping flow for clean operation.
Connection Types Covered
| Fitting / Thread Standard | Detail |
|---|---|
| JIC 37° Swivel Nut | SAE J514 37-degree flare swivel nut fittings. The most common hydraulic hose end fitting in North American manufacturing. The FasTest 60 grips behind the swivel nut for instant connection. |
| JIC 37° Flare | Male JIC 37-degree flare fittings. The FasTest 60 seals against the flare cone without wrenching onto the fitting. |
| ORFS Swivel Nut | SAE J1453 O-ring face seal swivel nuts. Common on modern hydraulic systems designed for zero-leak performance. |
| NPT External | National Pipe Thread (tapered) external fittings per ANSI/ASME B1.20.1. The FasTest 60 seals without thread tape or pipe dope—the internal seal does the work, not the threads. |
| BSPT / BSPP (G) External | British Standard Pipe (tapered and parallel) external threads per ISO 7/1 and ISO 228-1. Covers European, Asian, and international manufacturing specifications. |
| Metric External | Metric external threads per ISO 261/ISO 724. Common on European, Asian, and globally-specified components. |
| 45° Flare | SAE 45-degree flare fittings. Common in HVAC-R, automotive, and appliance plumbing connections. |
| Compression Fittings | Standard compression tube fittings. The FasTest 60 grips behind the compression nut for quick-connect operation. |
| Custom Configurations | Non-standard thread forms, custom fitting profiles, and specialty connection geometries available through FasTest custom engineering. |
Where the FasTest 60 Is Used
Automotive & EV Manufacturing
The FasTest 60 is the most commonly specified external thread connector in FasTest Engine Packages. It seals to oil drain ports, coolant ports, sensor locations, and other external threaded connections on engine blocks, cylinder heads, transmissions, and powertrain assemblies. On EV platforms, it connects to coolant circuit test points on motor housings and battery enclosures.
HVAC-R Component Testing
The FasTest 60 connects to threaded fittings on compressors, valves, manifolds, and piping assemblies during coil leak testing, system processing, and assembly verification. The optional internal shut-off valve is particularly popular in HVAC-R applications where refrigerant containment during disconnection is important.
Fluid Power & Hydraulics
Hydraulic hose assembly proof testing is one of the highest-volume applications for the FasTest 60. It grips JIC swivel nuts and ORFS fittings instantly—replacing the wrench-on connections that slow down hose test lines and damage fittings. Valve body, manifold, and pump testing also rely heavily on the FasTest 60 for external threaded port connections.
Aerospace
The FasTest 60 connects to AN and aerospace-specification external threaded fittings for tube assembly leak testing and proof testing. The collet’s non-damaging grip is critical on aerospace fittings where thread damage can scrap flight-critical components.
Appliance, Medical, and General Manufacturing
Any production environment with external threaded ports that need fast, repeatable, non-damaging test connections benefits from the FasTest 60. From appliance plumbing and gas connections to medical device threaded ports to general industrial testing, the FasTest 60 is the default choice for external thread sealing across FasTest’s entire customer base.
FasTest 60 vs. Wrench-On Threaded Connections
| Wrench-On Fitting | FasTest 60 | |
|---|---|---|
| Connection Time | 15–30+ seconds (multiple wrench turns) | 2–3 seconds (push on) |
| Thread Damage | Cross-threading, galling, wear over time | Collet grips behind threads — zero thread contact |
| Sealant Required | Thread tape or pipe dope on tapered threads | None — internal seal, no foreign material |
| Thread Length Variation | Inconsistent seal if thread engagement varies | Floating piston compensates automatically |
| Operator Strain | Repetitive wrenching | One-handed push-on, no tools |
| Disconnection | Wrench to unthread; drips/spills likely | Pull sleeve; optional shut-off valve stops flow |
| Seal Confirmation | None | ICON™ SURE SEAL™ available |
| Automation | Difficult | ICON™ provides PLC integration |
Frequently Asked Questions
Q: What is the FasTest 60?
A: The FasTest 60 (Series 60) is FasTest’s most widely used external thread quick connector. It provides instant push-on, pull-off connections to external threaded fittings and compression connections up to 750 psi (51 bar) for leak testing, pressure testing, proof testing, and filling applications. It covers the broadest range of external thread standards of any FasTest connector—NPT, BSPT, BSPP, JIC 37°, ORFS, metric, 45° flare, compression, and custom.
Q: What thread standards does the FasTest 60 connect to?
A: The FasTest 60 covers JIC 37° swivel nuts and flares, ORFS swivel nuts, NPT external, BSPT/BSPP (G) external, metric external, 45° flare, compression fittings, and custom thread configurations. This is the broadest external thread coverage of any FasTest product.
Q: What is the maximum pressure rating?
A: The FasTest 60 is rated for vacuum to 750 psi (51 bar) with pressure-assisted sealing. For higher-pressure applications, FasTest offers the HPB (6,000 psi), FasMate FX (5,000 psi), and TwistMate MET (10,000 psi) external connectors.
Q: How does the sleeve actuation work?
A: Push the FasTest 60 onto the external thread or fitting—the internal collet grips behind the threads and the seal engages automatically. To disconnect, pull the sleeve back to retract the collet and lift the connector off. One hand, one motion, no tools.
Q: Does the FasTest 60 damage the threads?
A: No. The collet locks behind the thread crest without rotating against the thread surface. This eliminates cross-threading, galling, and thread wear—even over tens of thousands of connection cycles.
Q: What is the floating piston?
A: The floating piston is a self-adjusting internal mechanism that positions the seal correctly against the fitting face or ID sealing surface, compensating for thread length variation between fittings. This ensures consistent sealing regardless of thread engagement depth.
Q: Is the FasTest 60 available with ICON™?
A: Yes. The FasTest 60 ICON provides SURE SEAL™ digital seal verification, LED feedback, safety interlocks, and real-time data output for PLC-integrated test stations. The 60 ICON is one of the most widely deployed ICON-equipped connectors.
Q: What is the optional internal shut-off valve?
A: The internal shut-off valve automatically closes when the FasTest 60 is disconnected, stopping flow and preventing drips or spills. This is particularly useful in oil, coolant, and refrigerant testing where clean disconnection is important.
Q: What industries use the FasTest 60?
A: The FasTest 60 is used across every industry FasTest serves: automotive and EV manufacturing, HVAC-R, fluid power, aerospace, medical, appliance, and general manufacturing. It is the most commonly specified connector in FasTest Engine Packages and the default choice for external threaded port leak testing across the FasTest customer base.

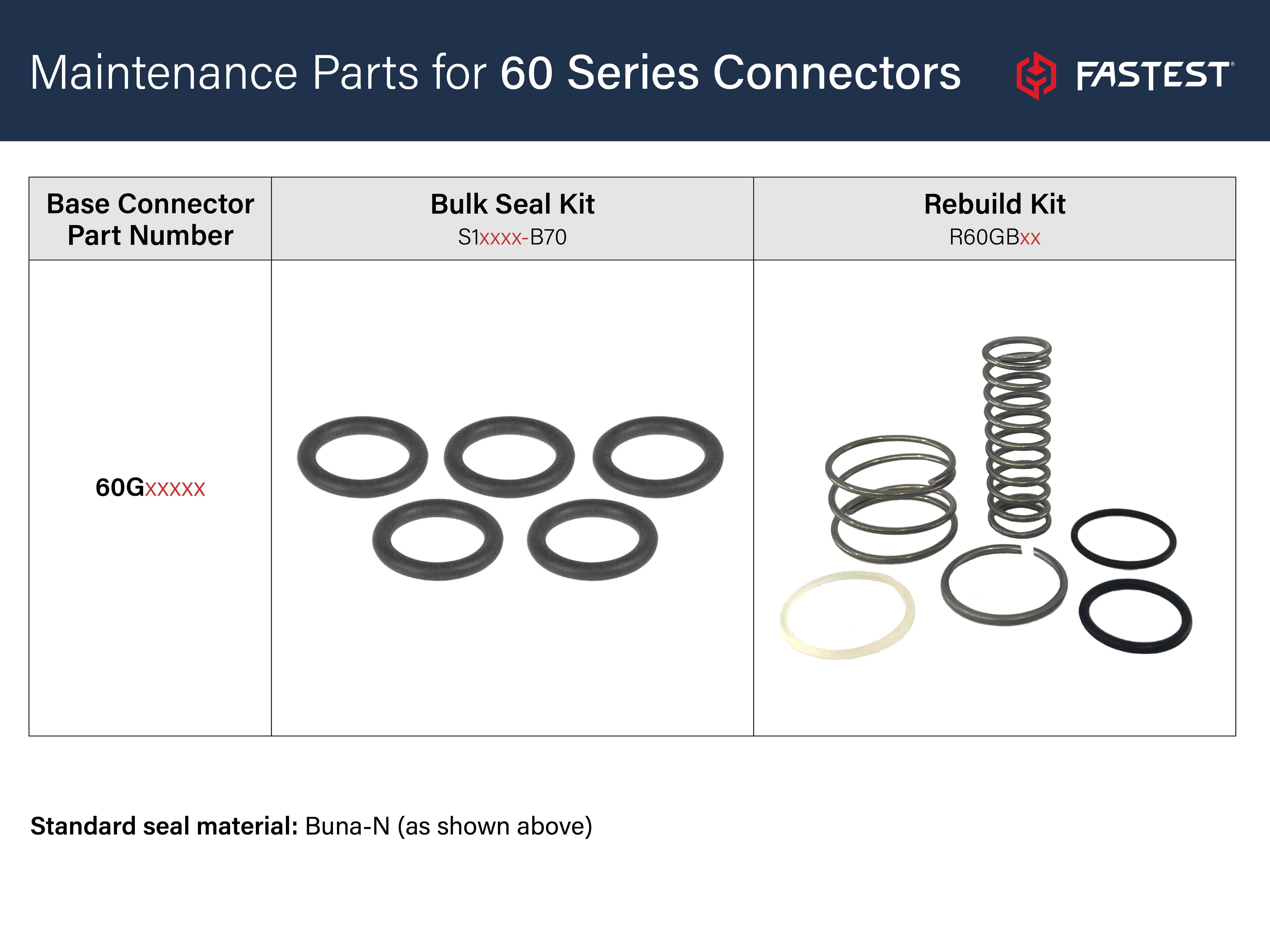

Q: Where can I get replacement seals and maintenance parts?
A: Replacement seal kits, collet assemblies, and maintenance parts for the FasTest 60 are available directly from FasTest. Visit the Maintenance Parts section or contact FasTest for the correct parts for your Series 60 configuration.
