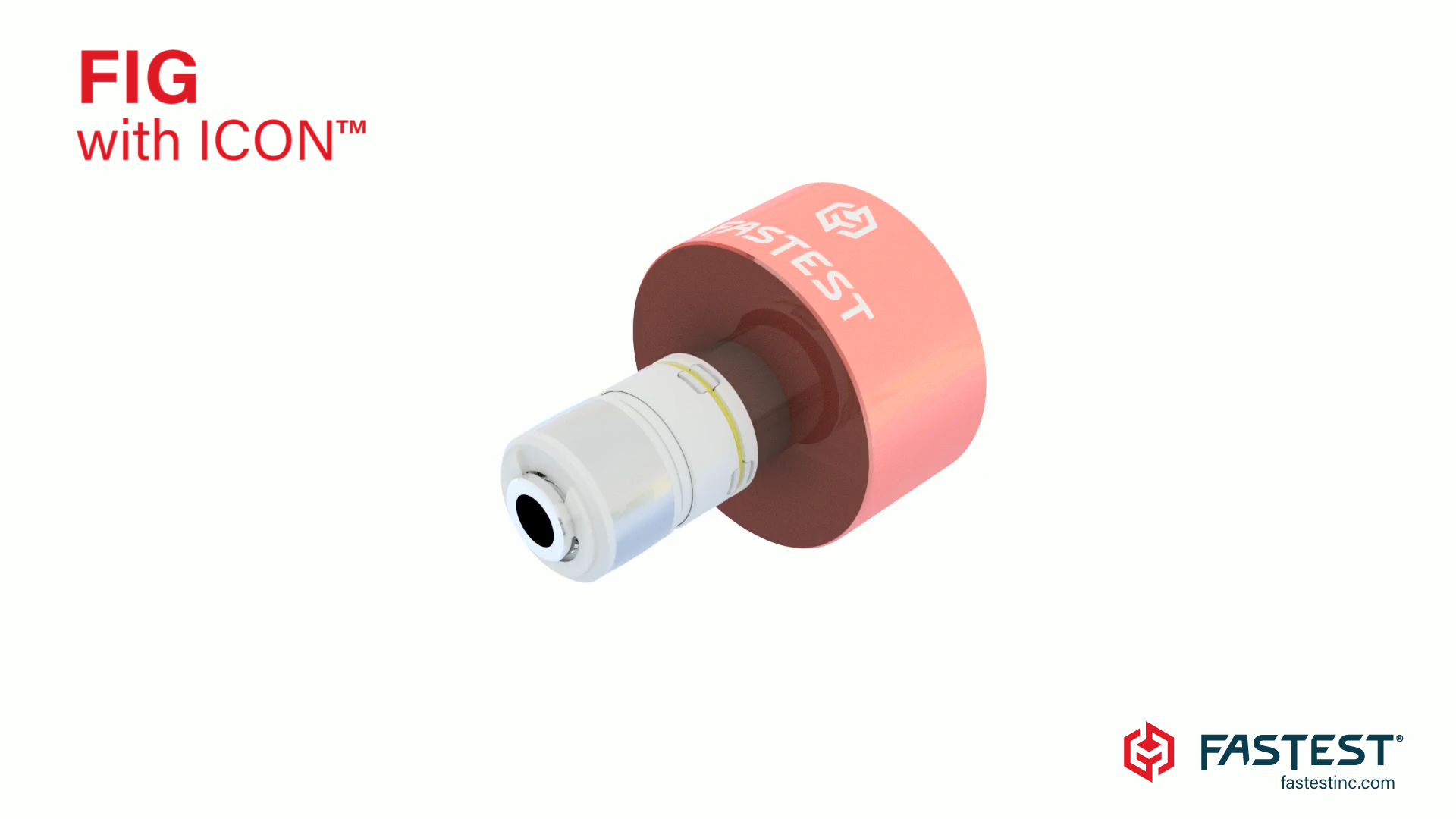

FIG

Internal Seal and Gripping Connections to Cast and Rough Surfaces (120 psi/8.3 bar)

Imperial
Metric
  • Gripping collets minimize need for fixturing - improved safety
  • Consistent sealing force with pneumatic actuation
  • Optimized for operator-applied connections on cast or rough surfaces

ICON™ | Intelligent Connection Technology

ICON™ sealing connection tools generate data and provide LED feedback to improve sealing connection accuracy, maximize production efficiency, and optimize tool maintenance. Available for select models. Learn more.

Designed For: leak testing and other related processes.

Connects To:
Straight Cast | Rough Surfaces | Tubes | Bores
Pressure Rating:
Vacuum to 120 psi (8.3 bar)
Actuation Method:
Pneumatic | Semi-Automated | Fully-Automated
Application Type:
Larger, rough surface internal bores and tubes

FIG Datasheet: Click Here

FIG Operating Instructions: Click Here

FIG Main Seal Replacement: Click Here

FIG Rebuild / Repair: Click Here

Product Video: Watch Here
