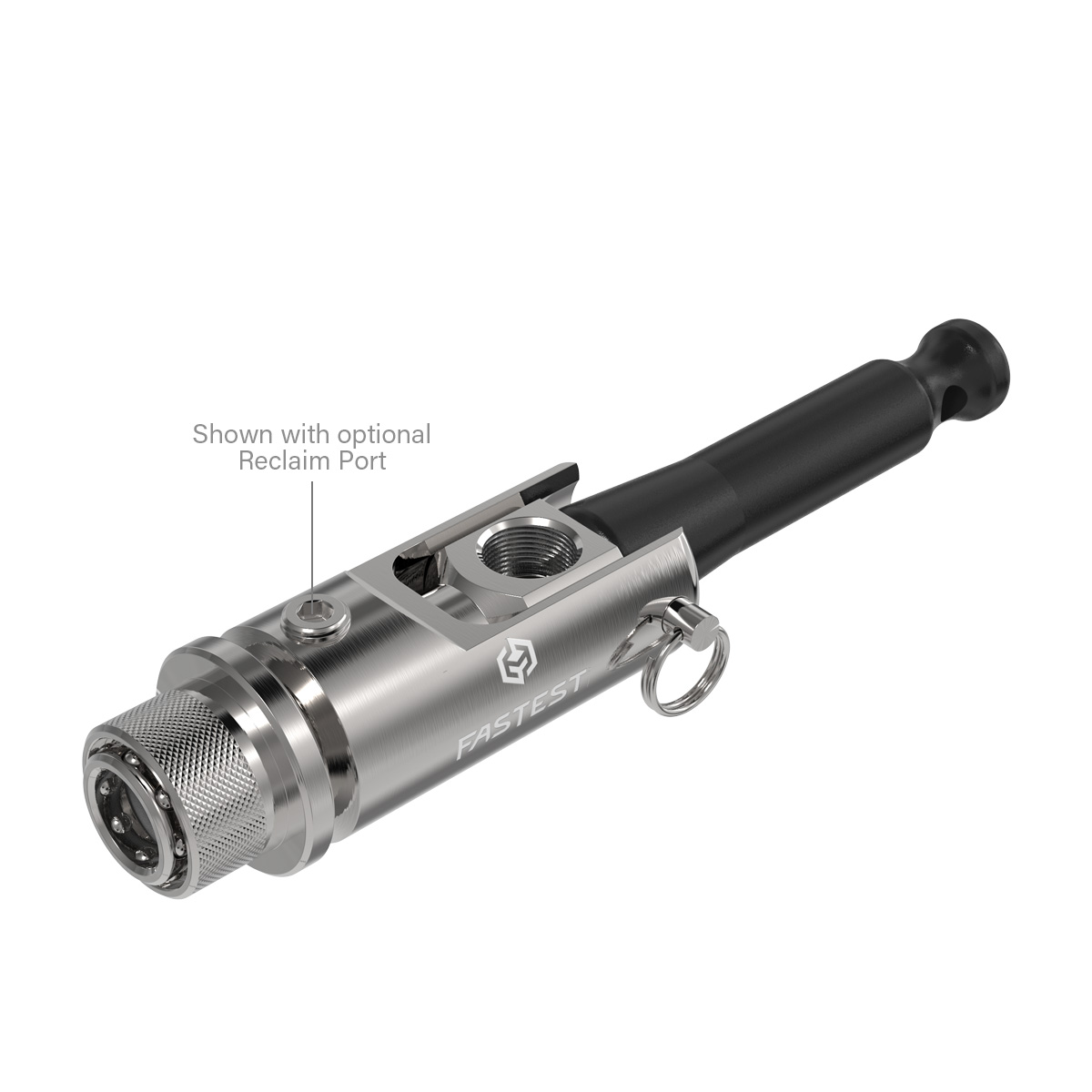

CoreMax® RQD
External Connections to CoreMax® Seat
Imperial
Metric
FasTest's CoreMax RQD easily connects to CoreMax Access Port.
- Sleeve latches RQD to CoreMax Access Port Seat before pressure is applied (by lifting handle) thus eliminating the high force to connect of a pressurized OEM SnapMate connector
- Safety latch feature prevents accidental disconnection when under pressure
- Lever handle opens/closes valves to charge system. When closing, residual pressure is safely directed away from operator or can be reclaimed in refrigerant applications
- Ergonomic action eliminates repetitive twisting motion & possible operator injuries
- Minimal maintenance required, main seals are easy to replace

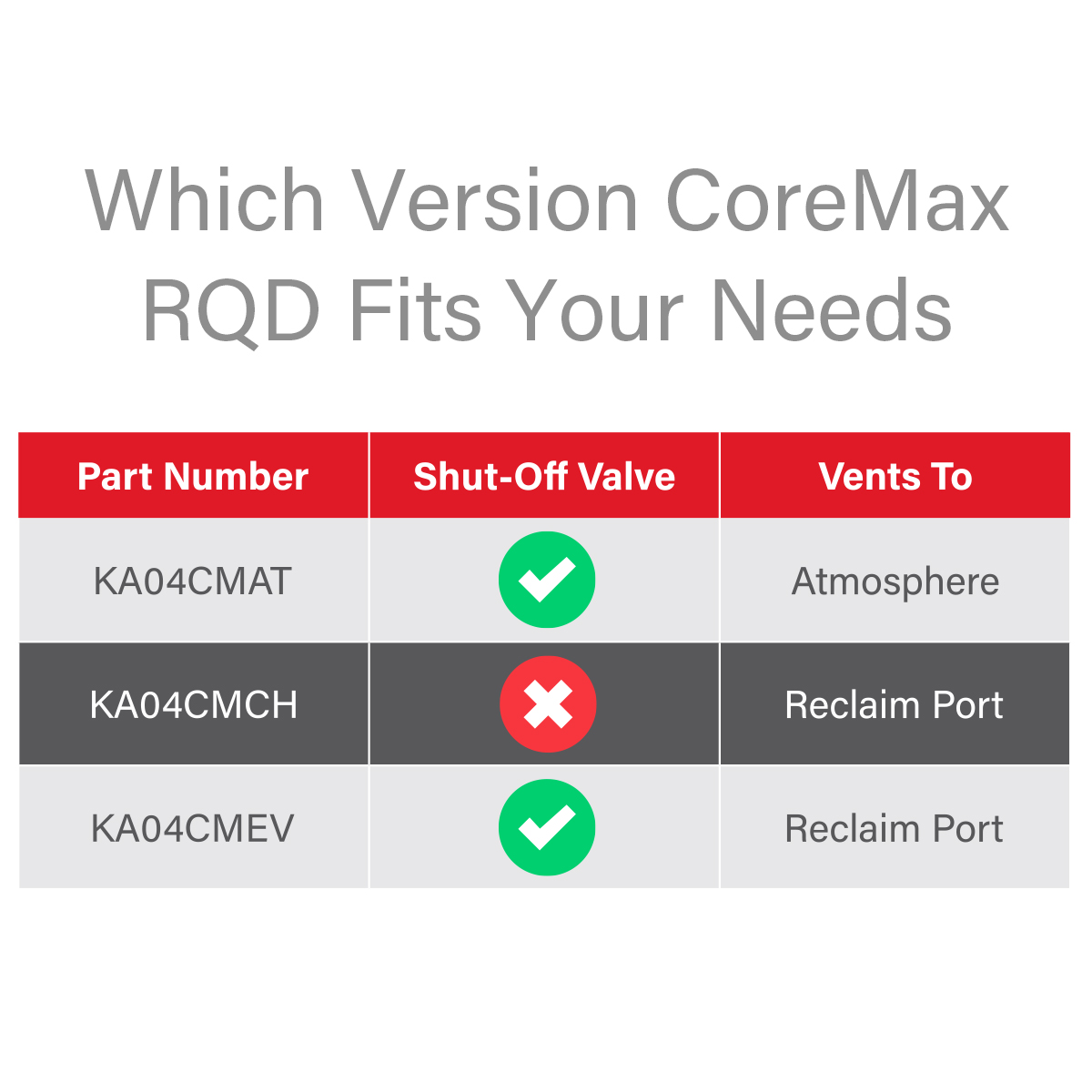

- Reclaim port option supports Zero Emission Processing
Connects To:
CoreMax Seat
Pressure Rating:
750psi (51.7 bar)
Actuation Method:
Sleeve latch, move handle to 90° (open) position
Application Type:
For “Processing” (Leak Test, Evacuation, Charging) systems with CoreMax Valves. Options available for refrigerant “Reclaim Ports” for Zero Emission Processing.
CoreMax RQD Operating Instructions: Click Here
CoreMax RQD Rebuild Instructions: Click Here
