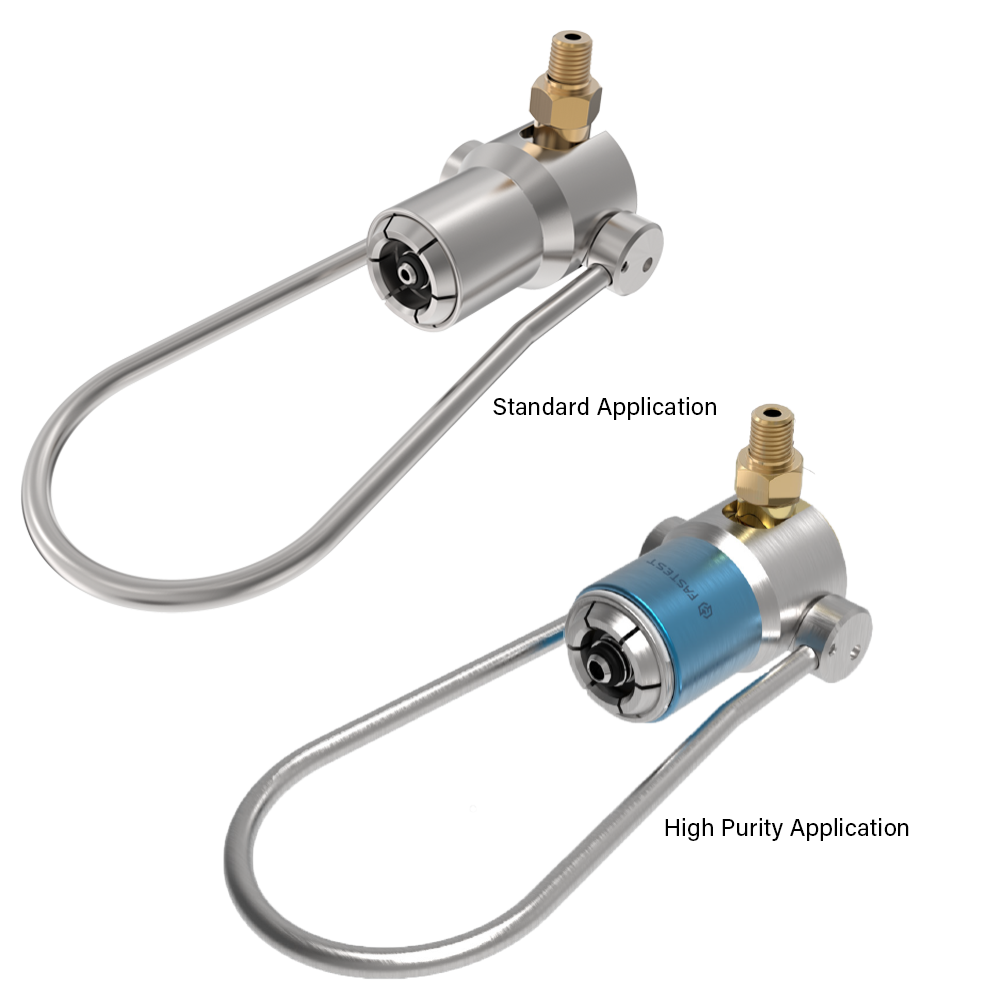

G540 Compressed Gas Connection Tool

Bail-handle connector for fast, secure, leak-free connections to CGA-540 valves used for oxygen service.

  • Instant connections to CGA-540 valves.
  • Positive pressure safety latch to prevent removal under pressure.
  • Optional retractable RPV pin.
  • Ergonomic bail handle surrounds valve for added safety.

Gas Type: Air and Oxygen.

FasTest Compressed Gas Handle Guide: Click Here

Connects To:
CGA 540 Valves
Max Pressure Rating:
Vacuum to 3600 psi (248 bar)
Actuation Method:
Bail/Cable/Lever/Sleeve
Actuation Type:
Air | Oxygen

G-Series External Datasheet: Click Here

G-Series External Bail Operating Instructions: Click Here

G-Series External Bail Main Seal Replacement: Click Here

RPV Pin Removal and Installation: Click Here

G540 Bail Handle Product Video: Watch Here

Configure Your Product View Maintenance Parts

The Quick-Connect CGA 540 Connector for Oxygen Cylinders

The FasTest G540 is a quick-connect CGA 540 connector that attaches externally to CGA-540 cylinder valves — the valve standard used for oxygen service. Instead of threading a fill connector onto the valve, the operator positions the connector and closes the ergonomic bail handle, making a complete CGA 540 connection in seconds with no wrenching and no thread engagement.

Safety is built into how the FasTest G540 connects. A positive-pressure safety latch prevents the connector from being removed while the cylinder is under pressure — the single most important protection when filling to 3,600 psi (248 bar). The bail handle itself surrounds the valve, giving the operator a secure, ergonomic grip and a natural guard around the connection point throughout the fill cycle.

An optional retractable RPV pin lets the same CGA 540 connector service cylinders fitted with Residual Pressure Valves, so a single tool covers both standard and RPV-equipped cylinders in a mixed fleet. Installation and removal instructions for the RPV pin are provided in the product documentation.

The FasTest G540 is available with bail, cable, lever, and sleeve actuation, so the same connection technology fits benchtop filling, manifold stations, and overhead or remote-actuated setups. FasTest publishes a Compressed Gas Handle Guide to help match the actuation style to the fill operation. Within the G-Series compressed-gas line, the G540 handles the external CGA-540 oxygen standard, while the G580 handles the internal CGA-580 standard used for inert gases.

The Problem the FasTest G540 Solves

Filling oxygen cylinders with threaded connections creates real bottlenecks and safety exposure on a high-volume fill line:

  • Slow, repetitive threading: Threading a fill connector onto every CGA-540 valve — and unthreading it afterward — is slow and physically repetitive across hundreds of cylinders per shift, driving operator fatigue and repetitive-motion strain.

  • Removal under high pressure: Oxygen cylinders can be filled up to 3,600 psi. A connection that can loosen or be removed while the cylinder is pressurized is a serious hazard, and a threaded connection relies entirely on correct engagement and operator care.

  • Thread wear on valves and connectors: Repeated threading wears the valve and connector threads over cycles, degrading the connection quality and eventually taking tooling out of service.

  • Mixed cylinder fleets: Cylinders fitted with Residual Pressure Valves need different handling than standard cylinders. Without an RPV-capable connector, fill operations end up maintaining separate tooling for each.

The FasTest G540 addresses all of this: a bail-handle CGA 540 connection that seals in seconds, a positive-pressure safety latch that prevents removal under pressure, no threading to wear the valve, and an optional retractable RPV pin so one connector serves the whole cylinder fleet.

Key Features

Instant CGA 540 Connector Connections

The FasTest G540 makes a complete connection to a CGA-540 valve in a single motion. The operator positions the connector on the valve and closes the bail handle to engage the seal — no thread tape, no wrenching, and no multi-turn engagement. On a fill line, this reduces the per-cylinder connection time from the 15–30+ seconds a threaded connection takes down to just a few seconds.

Positive-Pressure Safety Latch

A positive-pressure safety latch prevents the FasTest G540 from being removed while the cylinder is under pressure. This is the defining safety feature when filling oxygen to 3,600 psi — it removes the possibility of an energized disconnection and keeps the connection secure for the entire fill cycle rather than relying on operator technique.

Optional Retractable RPV Pin

Cylinders equipped with Residual Pressure Valves require a pin to open the valve during filling. The FasTest G540 offers an optional retractable RPV pin, so the same CGA 540 connector handles both standard and RPV-equipped cylinders without swapping tooling. RPV pin removal and installation instructions are available in the product documentation.

Ergonomic Bail-Handle Surround

The bail handle surrounds the valve, giving the operator a secure, ergonomic grip and a physical guard around the connection point. Closing the bail engages the seal with consistent force, which removes the operator-to-operator variation that comes with hand-threaded connectors and reduces strain across a full shift of cylinder filling.

Bail, Cable, Lever, and Sleeve Actuation

The FasTest G540 is offered with bail, cable, lever, and sleeve actuation so the same CGA 540 connector fits the way a given fill operation actually works — benchtop filling, manifold stations, or overhead and remote-actuated setups where the operator is not standing at the valve. The FasTest Compressed Gas Handle Guide walks through selecting the right actuation style.

Technical Specifications

SpecificationDetail
Product TypeExternal quick-connect CGA 540 connector for compressed gas cylinder valves.
Connects ToCGA 540 Valves — the external valve standard used for oxygen service.
Gas TypesOxygen
Max Pressure RatingVacuum to 3,600 psi (248 bar).
Actuation MethodBail / cable / lever / sleeve — see the FasTest Compressed Gas Handle Guide for selection.
Actuation TypeBail or Sleeve
Safety FeaturesPositive-pressure safety latch prevents removal under pressure; ergonomic bail handle surrounds the valve.
RPV CompatibilityOptional retractable RPV pin for cylinders equipped with Residual Pressure Valves, conforms to CGA 540R standard.
Related ProductG-Series G580 — internal connections to CGA-580 valves for inert gases (argon, helium, nitrogen), same 3,600 psi platform.
Target ApplicationsIndustrial and medical oxygen cylinder filling; cylinder valve testing and requalification.
DocumentationG-Series External datasheet, external bail operating instructions, main seal replacement, RPV pin removal and installation, and the G540 bail handle product video.

Where the FasTest G540 Is Used

Oxygen Cylinder Filling

CGA-540 is the cylinder valve standard for oxygen service, and filling oxygen cylinders in volume is the FasTest G540’s primary application. The bail-handle CGA 540 connection lets fill operators connect and disconnect in seconds while the positive-pressure safety latch keeps the connection secure throughout the fill.

Cylinder Valve Testing & Requalification

The FasTest G540 is also used to connect to CGA-540 valves for leak testing, pressure testing, and requalification. Because the connection is made without threading, repeated test cycles do not wear the valve threads the way a threaded test connector would.

RPV-Equipped Cylinder Filling

With the optional retractable RPV pin, the FasTest G540 fills cylinders fitted with Residual Pressure Valves using the same CGA 540 connector used for standard cylinders — which matters as RPV cylinders become more common across fleets.

FasTest G540 vs. a Threaded Fill Connection

 Threaded Fill ConnectionFasTest G540
Connection Time15–30+ seconds of threading per cylinderSeconds — position and close the bail handle
Removal Under PressureRelies on operator care; can loosenPositive-pressure safety latch prevents removal
Operator GuardingHands work at an exposed valve outletBail handle surrounds the valve
Operator StrainRepetitive threading and unthreading all shiftOne-motion bail actuation, no wrenching
Valve Thread WearValve and connector threads wear over cyclesNo threading — no thread wear on the valve
RPV CylindersMay require separate toolingOptional retractable RPV pin
Actuation OptionsOne methodBail, cable, lever, or sleeve
ThroughputConnection step caps cylinders per shiftFast connection removes the bottleneck

Frequently Asked Questions

Q: What is the FasTest G540?

A: The FasTest G540 is a quick-connect CGA 540 connector that attaches externally to CGA-540 cylinder valves for filling and testing oxygen cylinders up to 3,600 psi (248 bar). It uses an ergonomic bail handle and a positive-pressure safety latch instead of threaded engagement.

Q: What is a CGA 540 connector used for?

A: CGA-540 is the cylinder valve standard for oxygen service. A CGA 540 connector is how a fill tool, regulator, or test device attaches to those cylinder valves. The FasTest G540 makes that connection quickly and securely for filling, testing, and requalification.

Q: Which gases use a CGA 540 connection?

A: Oxygen. Inert gases such as argon, helium, and nitrogen use the CGA-580 standard instead — covered by the FasTest G580.

Q: What is the maximum pressure rating of the FasTest G540?

A: Vacuum to 3,600 psi (248 bar), covering the fill and test pressures typical of oxygen cylinders.

Q: How does the FasTest G540 connect to the cylinder valve?

A: The operator positions the connector on the CGA-540 valve and closes the ergonomic bail handle, which engages the seal and completes the connection in seconds. A positive-pressure safety latch then holds the connection while the cylinder is under pressure.

Q: What is the positive-pressure safety latch?

A: It is a safety mechanism that prevents the connector from being removed while the cylinder is pressurized. At 3,600 psi this eliminates the risk of an energized disconnection and keeps the connection secure for the full fill cycle.

Q: What is the retractable RPV pin?

A: Cylinders fitted with Residual Pressure Valves need a pin to open the valve during filling. The FasTest G540 offers an optional retractable RPV pin so the same connector handles both standard and RPV-equipped cylinders. Removal and installation instructions are provided in the documentation.

Q: What actuation options are available for the FasTest G540?

A: Bail, cable, lever, and sleeve. The choice depends on how the fill station is set up — benchtop, manifold, or overhead and remote-actuated. The FasTest Compressed Gas Handle Guide walks through selecting the right style.

Q: What is the difference between the G540 and the G580?

A: The FasTest G540 connects externally to CGA-540 valves for oxygen, while the G580 connects internally to CGA-580 valves for inert gases such as argon, helium, and nitrogen. Both are rated to 3,600 psi and share the same bail-handle, safety-latch design.

Q: Is the FasTest G540 suitable for oxygen service?

A: The G540’s gas type designation covers oxygen, and it connects to the CGA-540 valve standard used for those gases. Because oxygen service carries specific handling and configuration requirements, confirm the correct G540 configuration for your application with FasTest before ordering.
