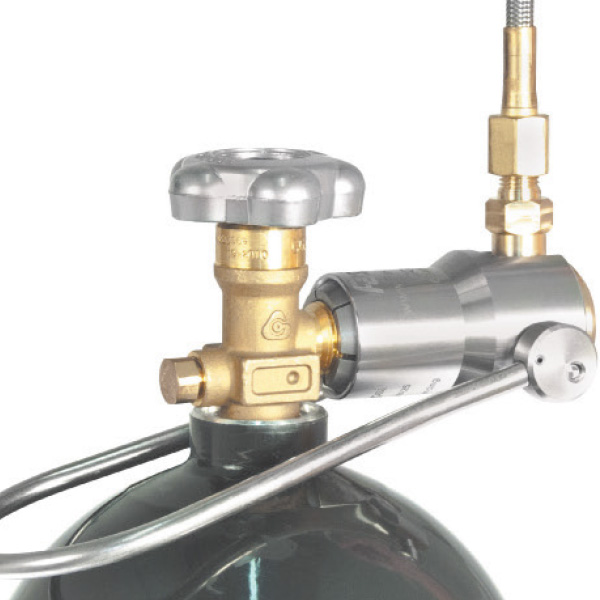

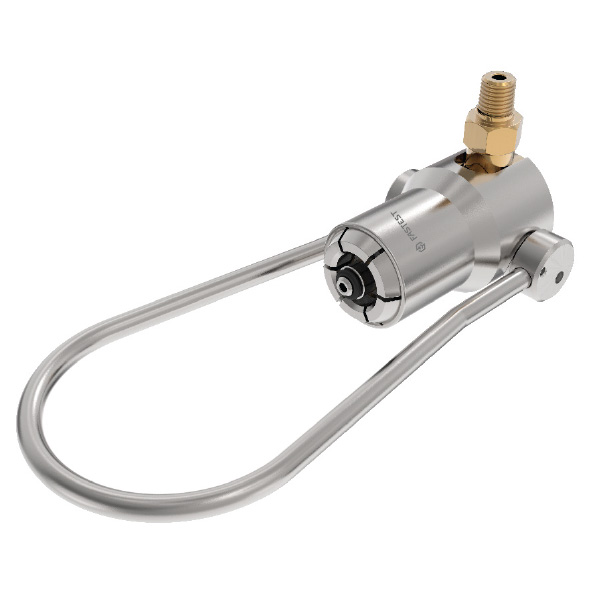

G350 Hydrogen Compressed Gas Connector
Bail handle actuated external connector for CGA 350 compressed gas processing
- Instant connections to CGA-350 valves.
- Positive pressure safety latch to prevent removal under pressure.
-
Self-aligning internal floating piston supports reliable sealing.
- Ergonomic bail handle surrounds valve for added safety.
Gas Type: Hydrogen
FasTest Compressed Gas Handle Guide: Click Here
Connects To:
CGA 350
Max Pressure Rating:
3600 psi
Actuation Method:
Manual
Actuation Type:
Manual
G-Series External Datasheet: Click Here
G-Series External Bail Operating Instructions: Click Here
G-Series External Bail Main Seal Replacement: Click Here
RPV Pin Removal and Installation: Click Here
