EZ Connect™ ZGN

Internal Wide Tolerance Threaded Connections for Multiple Thread Sizes/Types (300 psi/20.7 bar)

Imperial
Metric
  • Connect to multiple thread sizes/styles.
  • Pressure assisted sealing.
  • Self aligning sleeve for reliable connections, even with miss-alignment.
  • Compact size fits into tight spaces and tightly spaced bores.

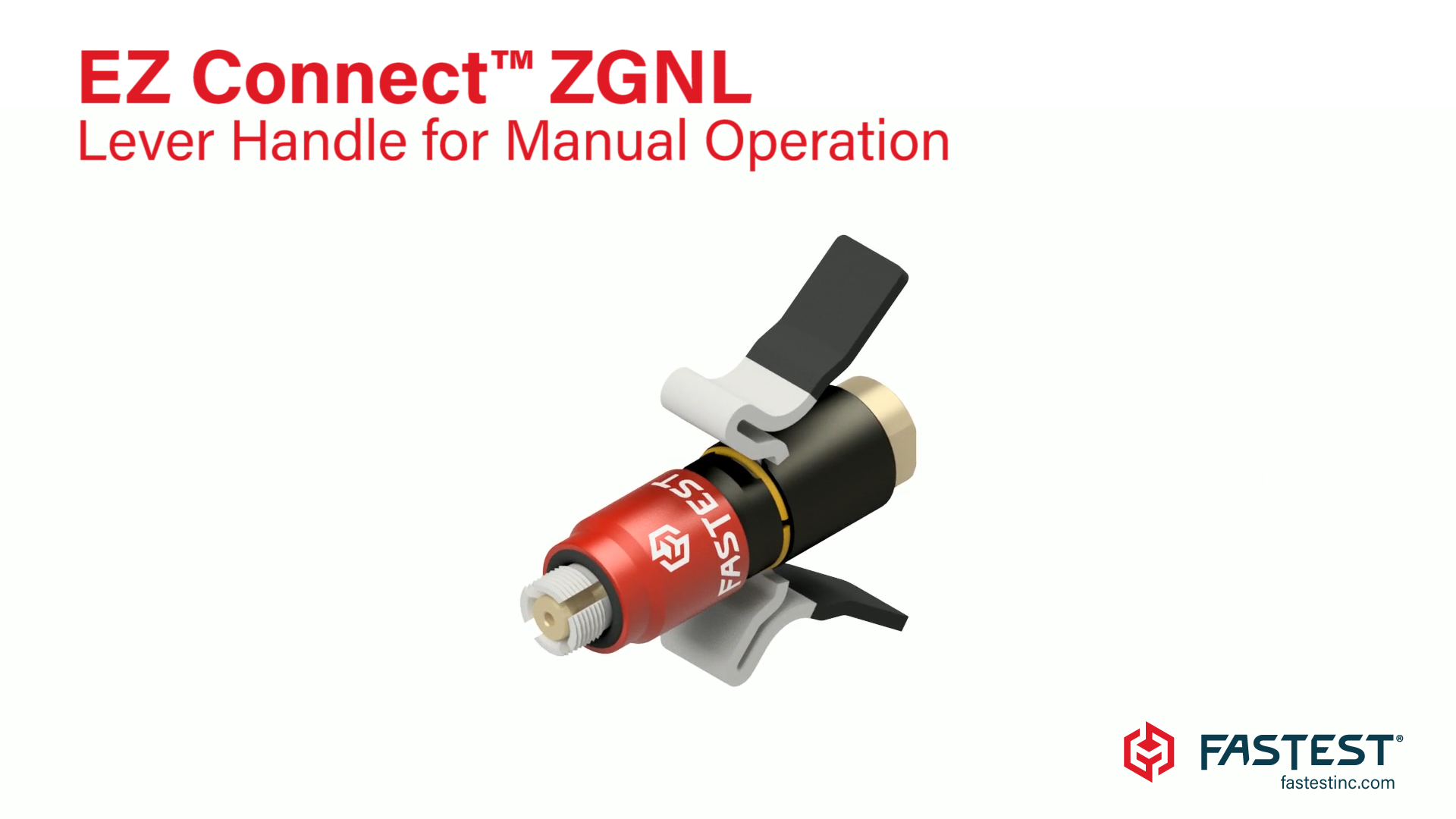

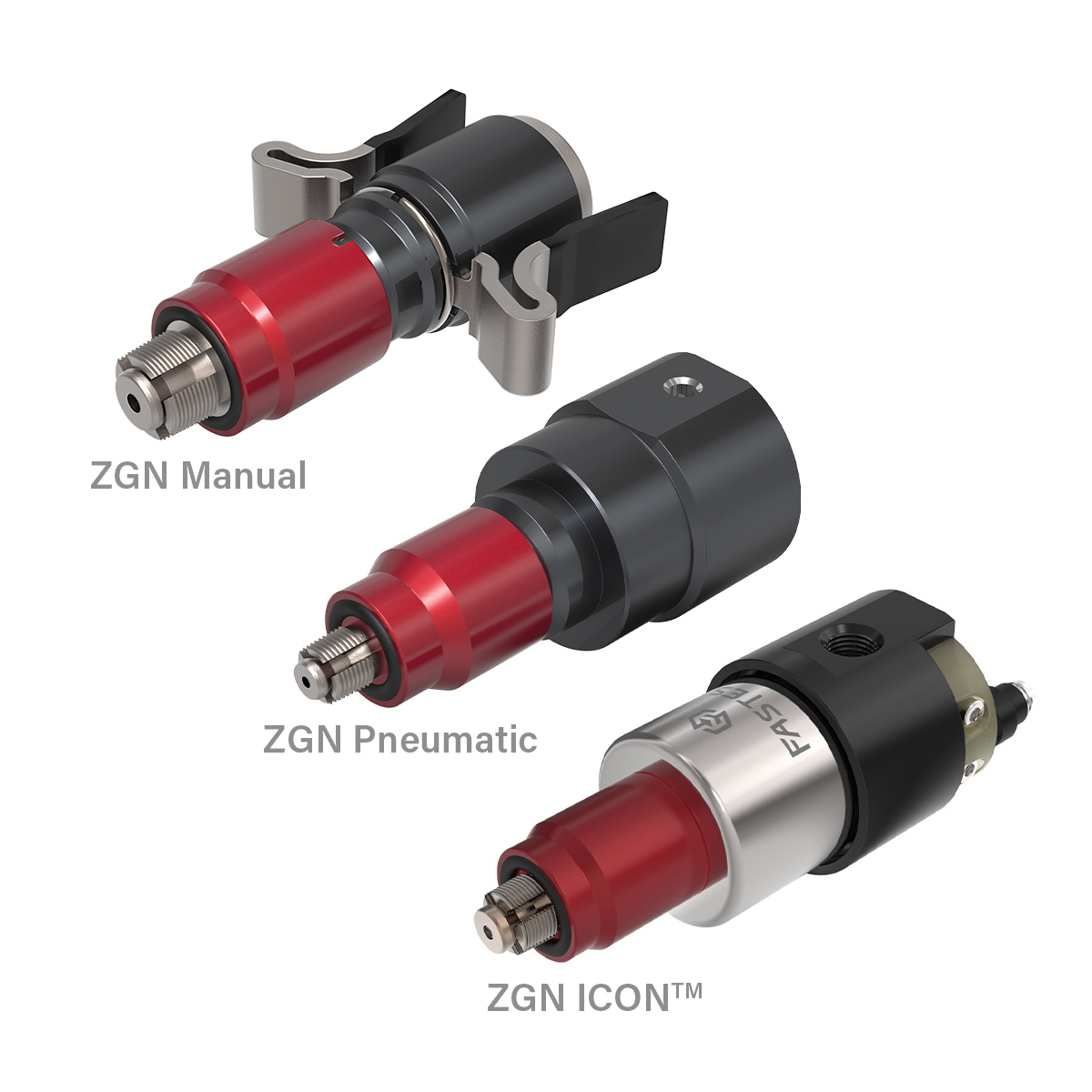

  • Lever operation for manual applications. Pneumatic operation for automated testing or end of arm grip and hold.

ICON | Intelligent Connection Technology

ICON™ sealing connection tools generate data and provide LED feedback to improve sealing connection accuracy, maximize production efficiency, and optimize tool maintenance. Available for select models. Learn more.

Designed For: in-process testing, fluid transfer, and other related processes.

Connects To:
NPT | SAE | BSPP (G)/BSPT | METRIC | All Internal Threads
Pressure Rating:
Vacuum to 120 psi (8.3 bar) Lever Version | Vacuum to 300 psi (20.7 bar) Pneumatic Version
Actuation Method:
Lever Handle | Pneumatic | Semi-Automated | Fully Automated
Application Type:
Internal Threads

ZGN Datasheet: Click Here

ZGNP ICON Datasheet: Click Here

ZGNP Operating Instructions: Click Here

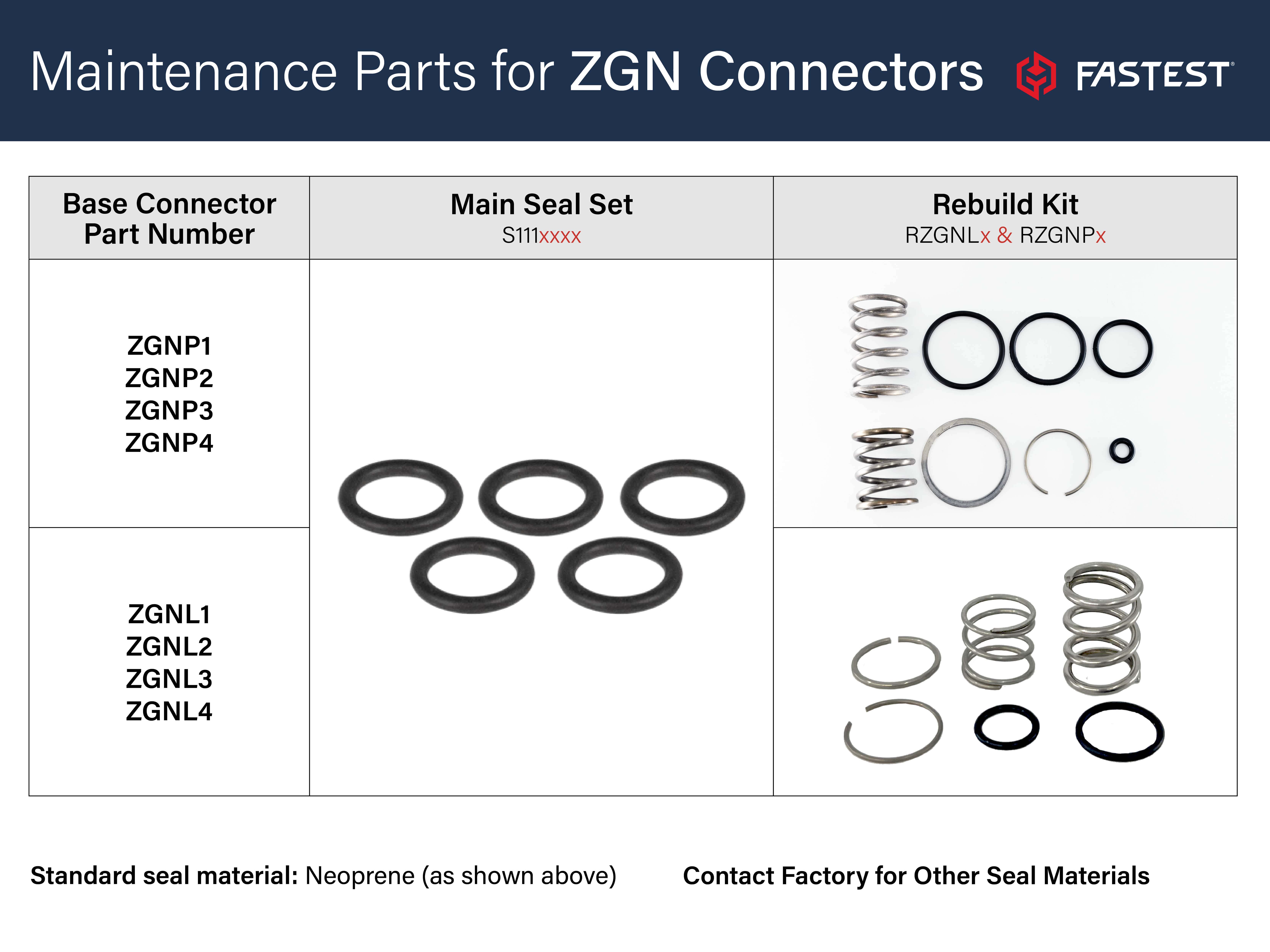

ZGNP Rebuild / Repair: Click Here

ZGNL Operating Instructions: Click Here

ZGNL Rebuild / Repair: Click Here

Product Video: Watch Here
